Thin-film underfloor heating complete system for 18 mm installation height, 10 m²

The complete set for underfloor heating in a thin-layer system for 12 mm pipes was specially developed for renovations and modernizations where a low installation height is crucial. With a total installation height of just 18 mm including screed (when using Planogel Rheo), it offers maximum efficiency with minimal space requirements. The self-adhesive studded panels enable quick and easy installation , even on existing subfloors such as tiles, screed, or wood.

The advantages of the complete set for underfloor heating in the thin-layer system:

🔹 Extremely low installation height: Ideal for renovations without major structural modifications.
🔹 Easy installation: Self-adhesive studded panels for quick installation.
🔹 Versatile: Suitable for various surfaces such as stone, wood materials or tiles.
🔹 Fast heat transfer: The thin screed layer ensures short heating times.
🔹 Energy efficient: Ideal for operation with heat pumps and low-temperature heating systems.
🔹 Durable & low maintenance: High-quality materials guarantee a long service life.

Technical structure:
✔ Thin-film bubble wrap: 13 mm for 12 mm heating pipe
✔ Screed cover: At least 5 mm above the pipes (Planogel Rheo)
✔ Total height: Only approx. 18 mm (including Planogel Rheo leveling screed)
✔ Recommended heating pipe length: Max. 70 m per heating circuit for even heat distribution

Easy self-assembly:

1. Prepare the surface: Stable, dust-free and primed.
2. Laying profiled panels: Simply glue and adjust.
3. Inserting heating pipes: Secure fixation thanks to the stud system.
4. Carry out a leak test: Test before applying the floor covering.

💡 Note: This system is supplied without screed . For optimal results, we recommend the leveling compound Planogel Rheo from Kerakoll. We calculate approximately 1.6 kg per mm of screed per m². The minimum installation height of 18 mm can only be achieved with a suitable leveling compound! IMPORTANT! The leveling compound must be applied by a professional! You should also consult an expert before installing the thin-layer system.

The complete set for underfloor heating in a thin-layer system – perfect for renovations, energy-efficient and easy to install!

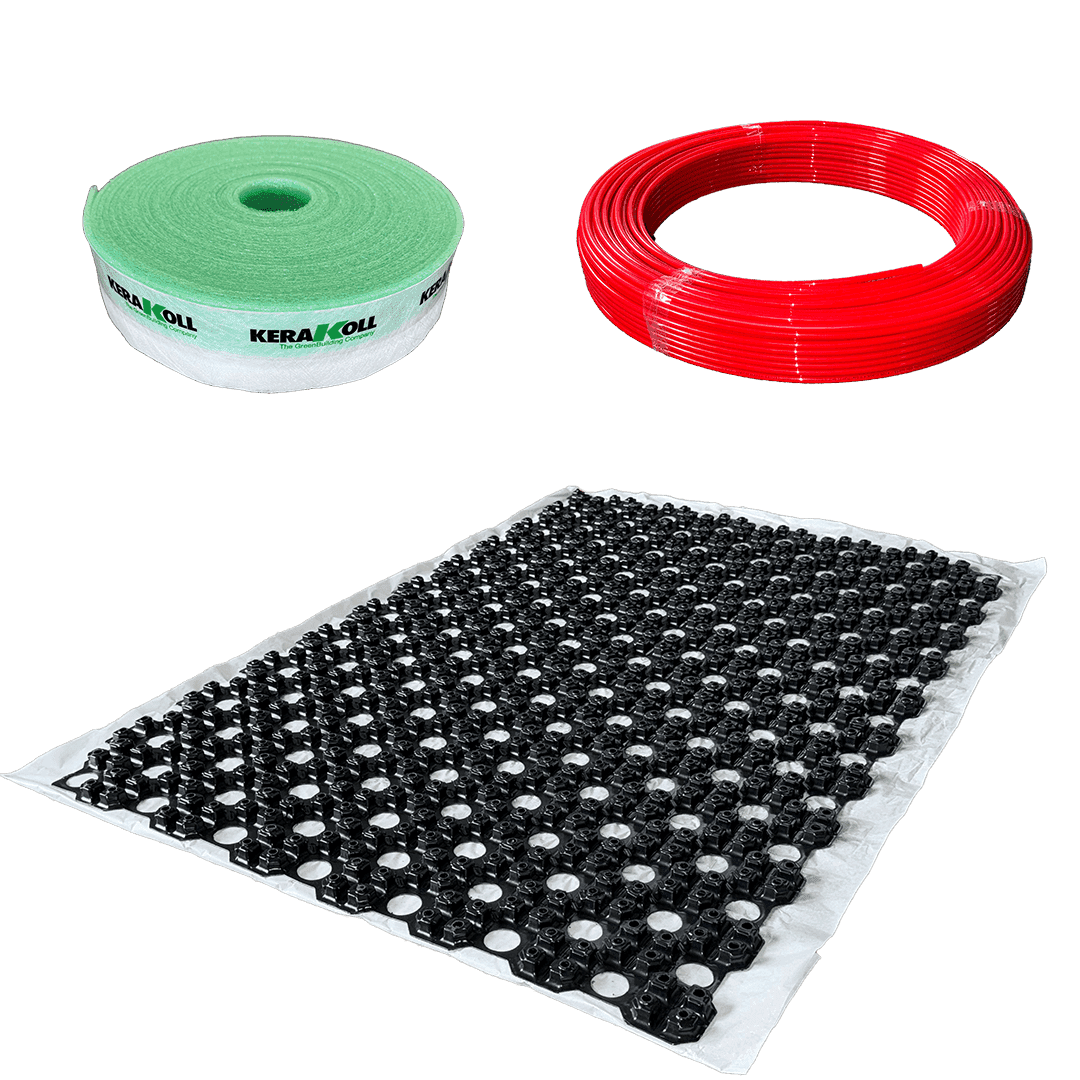

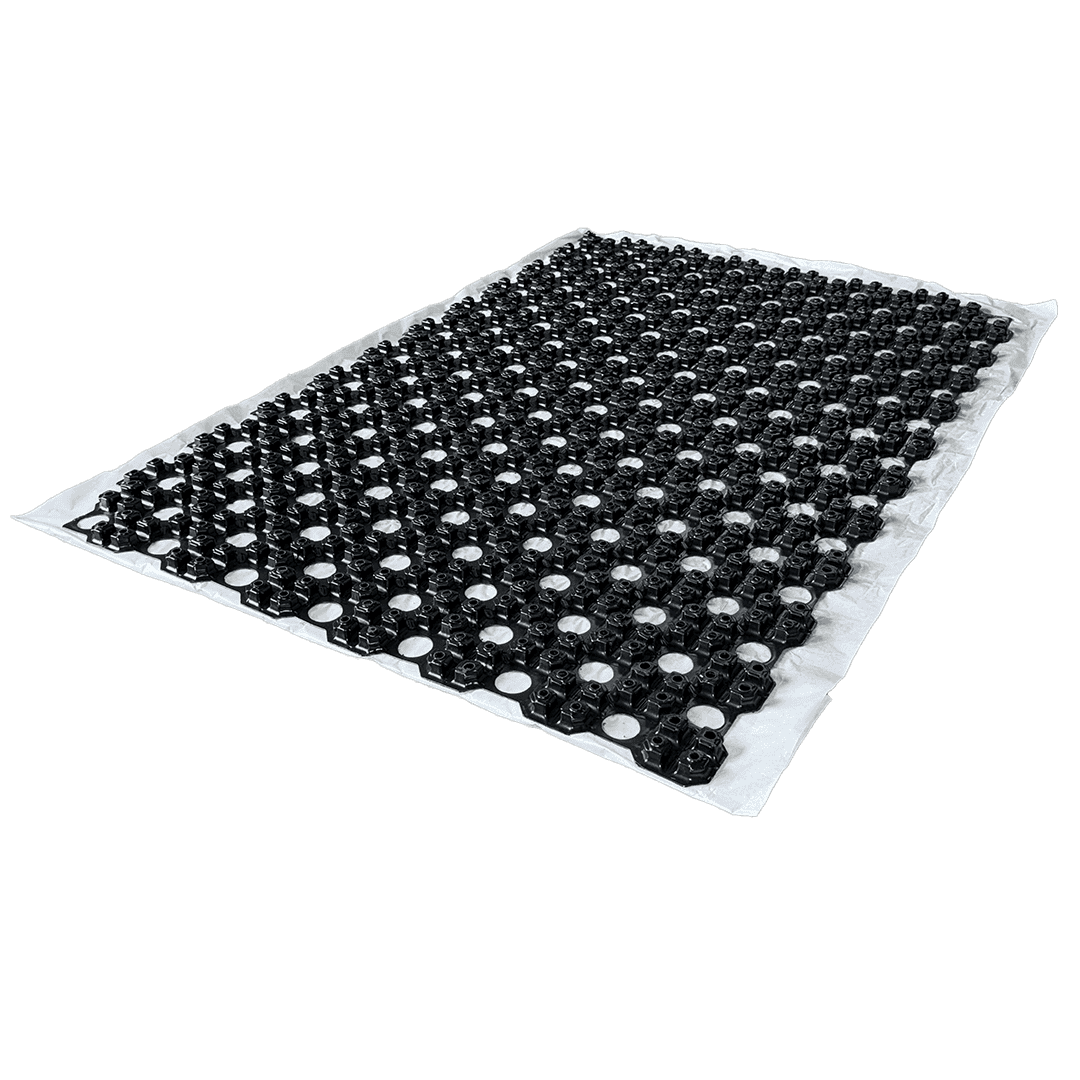

12 pieces = 10.22m² bubble wrap for 10-12mm pipe

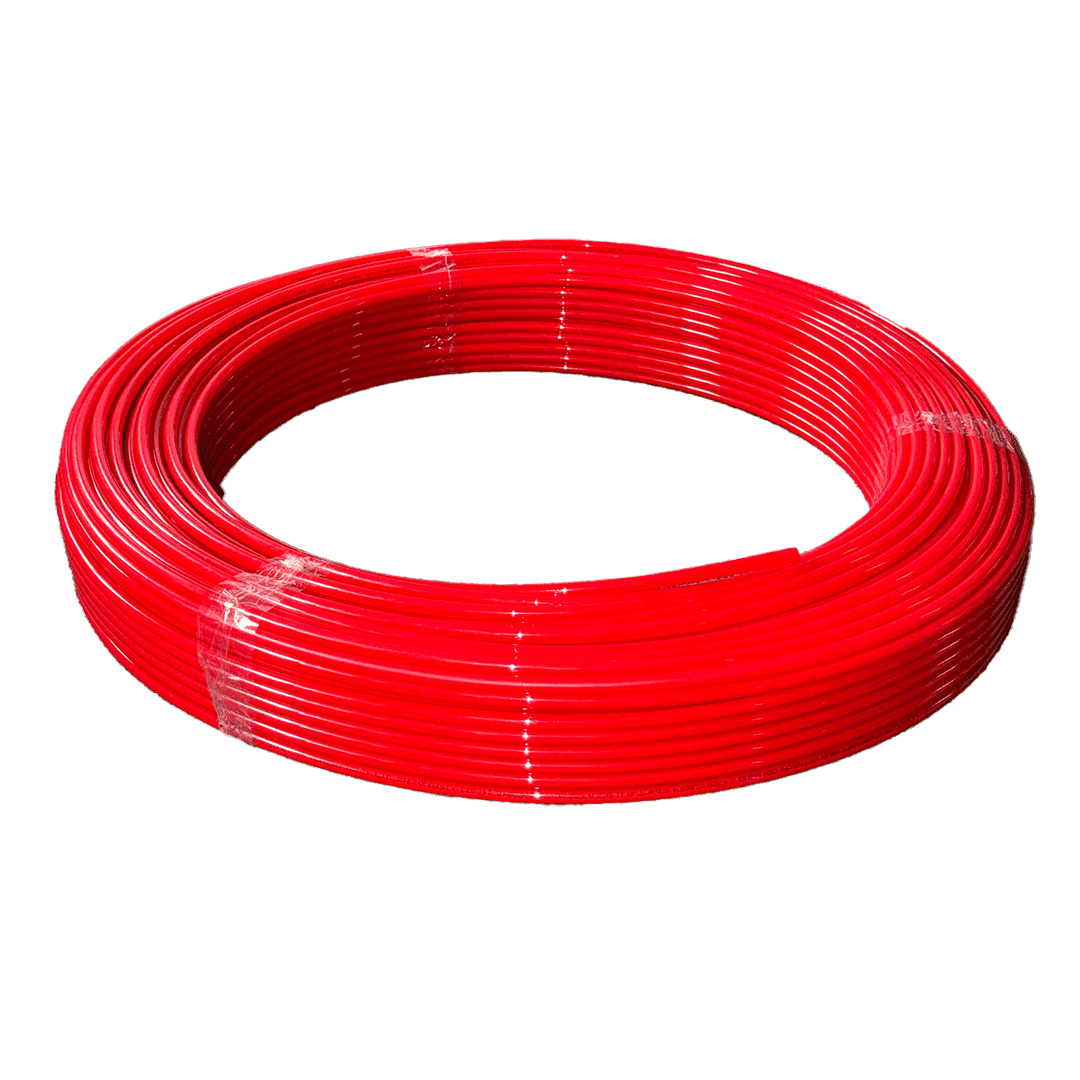

1 roll x 200m PERT heating pipe (color may vary)

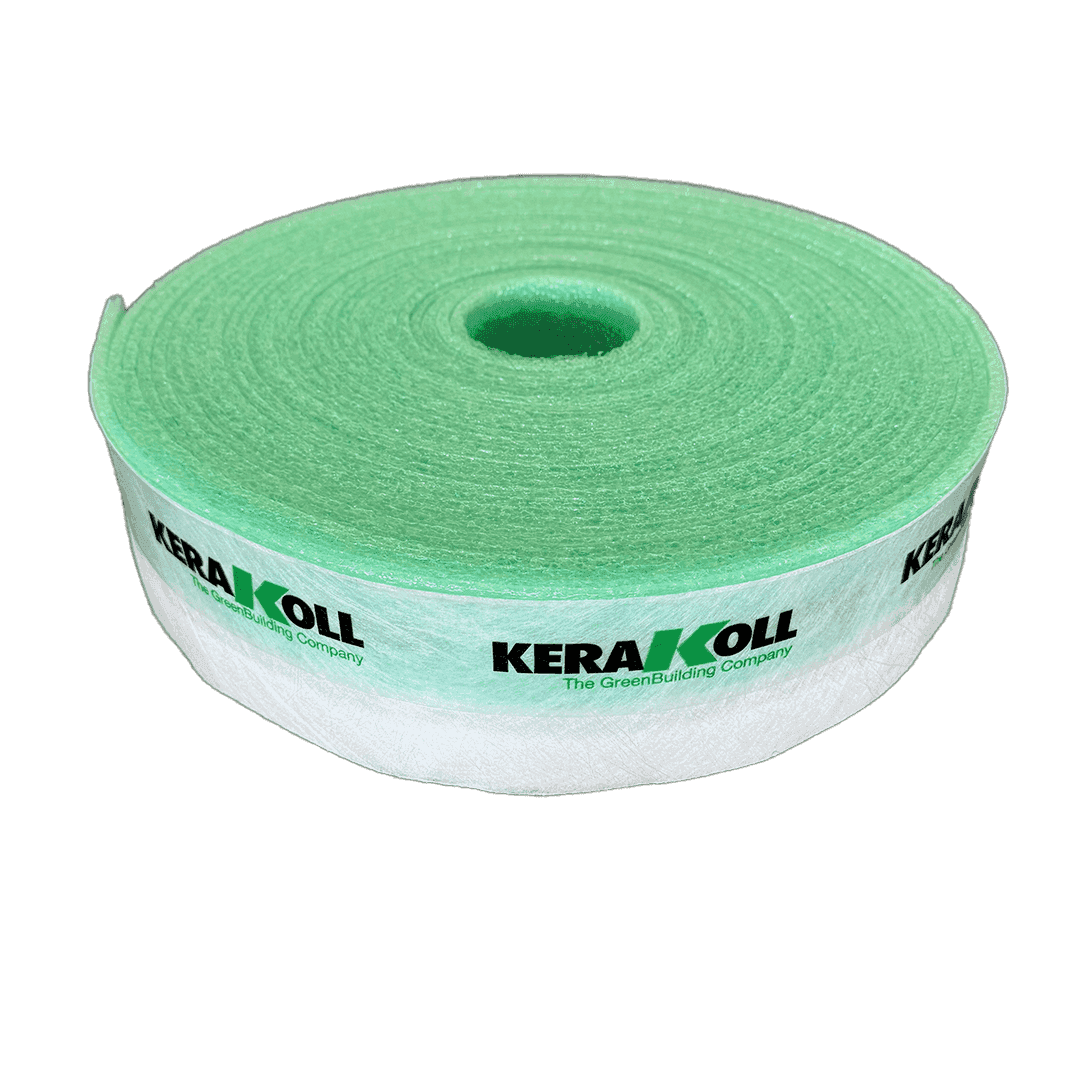

1 roll x 20m Kerakoll reinforced edge insulation strip self-adhesive
