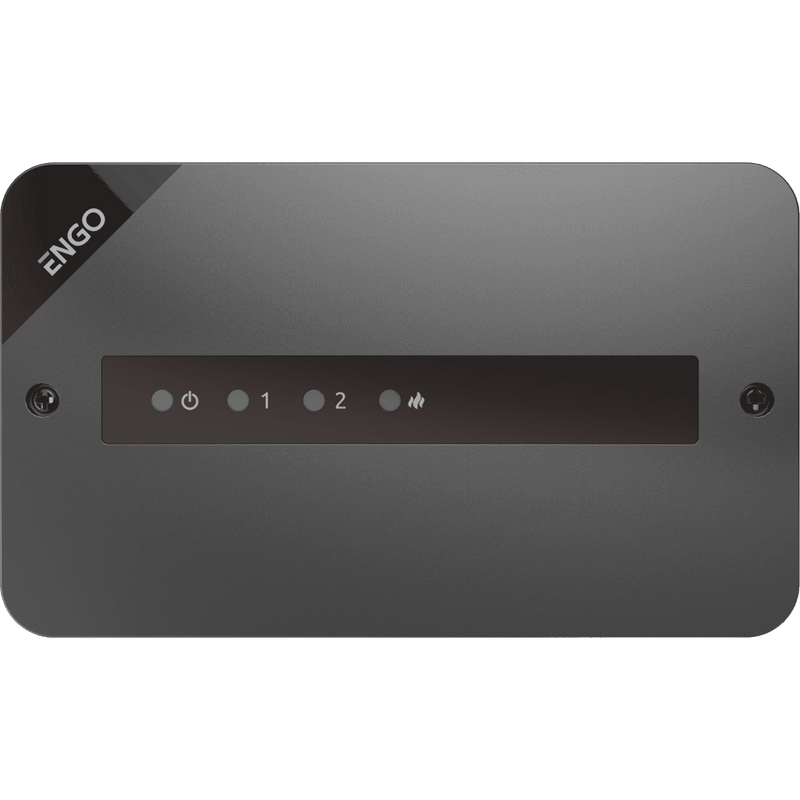

Mini Control Terminal Block ECB2-230 V Wired 2 Zones

Name: Mini Control Terminal Block ECB2-230 V Wired 2 Zones
Brand: MC Therm
SKU: 84-000-453
Price: 46.23 EUR
Availability: InStock
Rating: 5.0 (3 reviews)

The wired mini control terminal strip ECB2-230 V allows control of two different heating zones via 230V connections. It also has connections and control unit...

★★★★★

5.0 3 Bewertungen | 〜 3 Personen sehen dieses Produkt gerade an

€46,23

Inkl. 19% MwSt. · Paketversand frei ab 100 €· INSTALLMENT PAYMENT POSSIBLE

Bis zu 10 % sparen, wenn du ein Komplettset kaufst Jetzt im Konfigurator zusammenstellen

→

Auf Lager

Only 12 sets available

Delivery by

✓2 independent heating zones – compact & space-saving

✓Integrated Pump & Boiler Control Output

✓DIN rail compatible - clean installation in the distribution box

✓Ideal for single-family homes and small properties

Paketversand frei ab 100 €

30-Day Returns risk-free

Technical Consulting Mon–Fri · 8 AM–5 PM

Zahlung

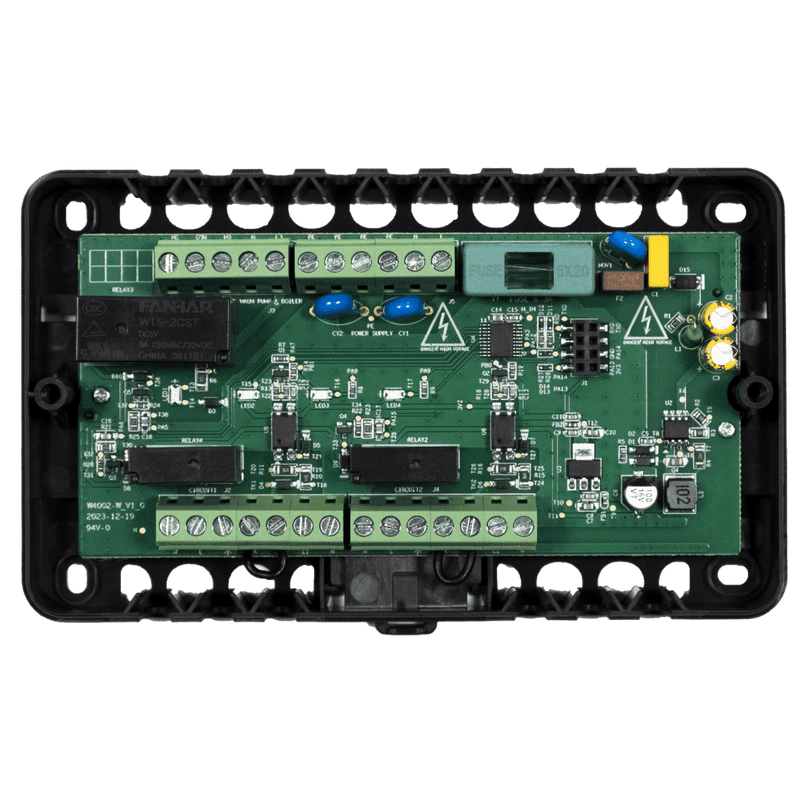

The wired mini control terminal strip ECB2-230 V allows control of two different heating zones via 230V connections. It also has connections and control units for the circulation pump and boiler. The control terminal strip is designed for DIN rails and offers practical, removable terminals for easy cable connection.

Technische Daten

Voltage

230 V AC

Heating Zones

2 independent zones

Pump outlet

Integrated

Boiler outlet

Integrated

Assembly

DIN rail or wall

Dimensions

approx. 150 × 90 × 35 mm

Lieferumfang

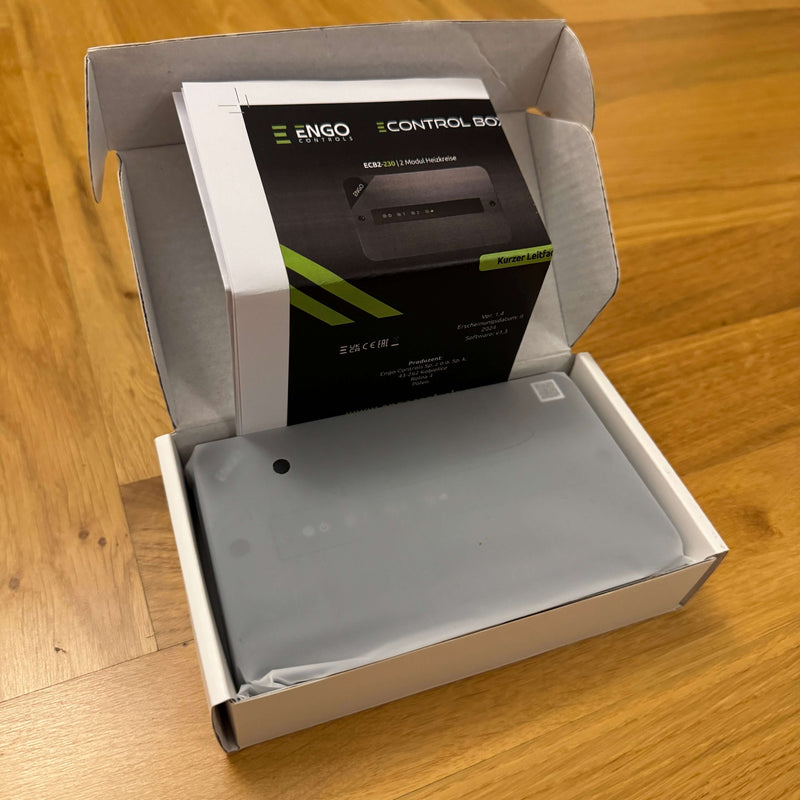

1 x Terminal strip + instruction manual

★★★★★

Verifiziert

"Einfach top, funktioniert wie beschrieben."

Walburga Fechner07.07.2025

★★★★★

Verifiziert

"Exzellente Verarbeitung, jederzeit wieder. Fünf Sterne!"

Brunhild Hellwig14.04.2025

★★★★★

Verifiziert

"Einwandfreie Funktion, bin begeistert. Kann ich nur empfehlen!"

Jens-Peter Kensy01.05.2025

Shipping

Paketversand 4,99 € · ab 100 € versandkostenfrei

Über 10 kg Versandgewicht 9,99 €

Lieferzeit 3–5 Werktage · Sendungsverfolgung per E-Mail

Warranty

5-year manufacturer's warranty (Engo Controls)

Customer service & technical support

30-day return policy without stating reasons

Quality product from European manufacturing

When is the ECB2-230V sufficient instead of the ECB8-230V?

The ECB2-230V is sufficient for single-family homes or small properties with a maximum of 2 heating zones. For more than 2 independent zones, we recommend the ECB8-230V.

Can the ECB2-230V directly switch the pump and boiler?

Yes. The ECB2-230V has integrated outputs for the circulation pump and heat generator. This eliminates the need for a separate relay module.

Which thermostats are compatible?

All common 230V room thermostats are compatible – including all wired ENGO thermostats (E901, Easy-230, ESimple) as well as digital thermostats with 230V output.

How does ECB2 differ from ECB8?

The ECB2-230V controls 2 zones, while the ECB8-230V controls 8 zones. The ECB2 is more compact (approx. 150×90mm vs. 330×110mm) and more affordable. Both have integrated pump and boiler outputs.
