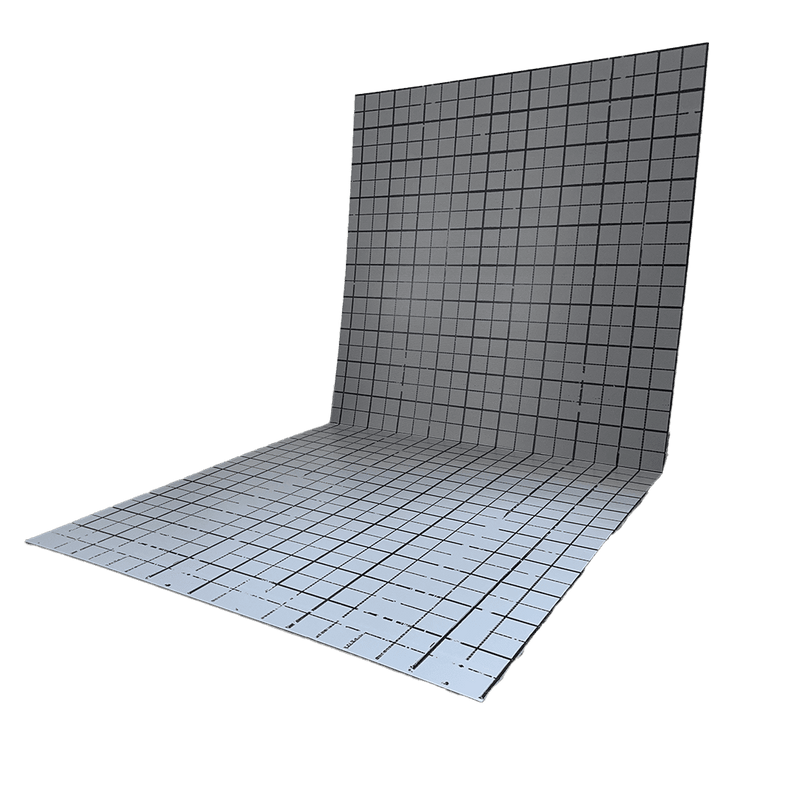

Hohlkammerprofilplatte mit Rasteraufdruck für Fußbodenheizung zum Tackern
Hohlkammerprofilplatte mit Rasteraufdruck für Fußbodenheizung zum Tackern - Waben
Hohlkammerprofilplatte mit Rasteraufdruck für Fußbodenheizung zum Tackern
Hohlkammerprofilplatte mit Rasteraufdruck für Fußbodenheizung zum Tackern - Waben
Made in GermanyChemnitz
DIN EN 1264checked
OEM-DirectNo intermediaries
Tacker systemHollow chamber installation panel
MC Therm

10sqm Twin-wall Panel Underfloor Heating - PP Tacker System

The hollow-chamber installation panel made of high-quality polypropylene (PP) is the ideal base for wet screed underfloor heating systems using the staple sy...

€85,24€8,52 /m²
Inkl. 19% MwSt. · Versandkostenfrei ab 1200 €· INSTALLMENT PAYMENT POSSIBLE
Auf Lager
Only 12 sets available
Delivery by
✓Fire protection class B1 - flame-retardant
✓100 mm laying grid for fast pipe routing
✓Compatible with staple pins & clamp rail system
✓Can be cut to size with a utility knife without tools
Plate thickness: 2mm
density: 500g
1
Do you want to save 10% on your purchase? Then configure your complete set now in one of our configurators.
→
Free shipping ab 1200 € Auftragswert
5-year warranty on pipe & system
30-Day Returns risk-free
Technical Consulting Mon–Fri · 8 AM–5 PM
ZahlungAmerican Express Apple Pay BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard PayPal Shop Pay Union Pay Visa
SKU: 14-500-002

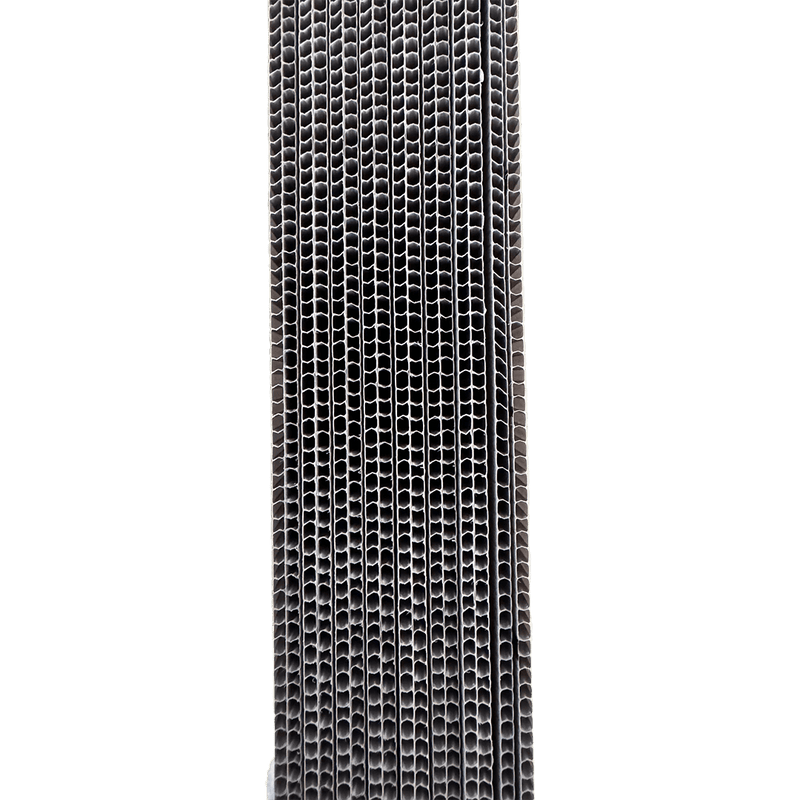

The hollow-chamber installation panel made of high-quality polypropylene (PP) is the ideal base for wet screed underfloor heating systems using the staple system. With its precise 100 mm installation grid, it allows for quick and error-free pipe routing without time-consuming measuring. Thanks to its robust hollow-chamber structure, it offers optimal compressive strength and reliably protects the heating pipes during screed work. The panel can be cut without tools using a utility knife and can be installed both as a stapling surface and with clamping rails. Compliant with DIN 18560 and DIN EN 1264 – suitable for new construction and renovation.

Technische Daten

Material
Polypropylene (PP), recyclable
Plate thickness
2 mm or 3 mm (double-wall thickness)
Publisher grid
50 mm optical grid
Compatible Tubes
Ø 14, 16, 17 mm
Installation height
from 20+2 mm
Max. operating temp.
60°C
Fire Protection
Class B1 (flame-retardant)
Standard
DIN 18560 / DIN EN 1264
★★★★★
Verifiziert
"Exzellente Verarbeitung, jederzeit wieder. Fünf Sterne!"
E
Eric Kade15.03.2025
★★★★★
Verifiziert
"Die Montage war unkompliziert, die Anleitung leicht verständlich und alles funktioniert bestens."
D
Dora Jäkel26.03.2025
★★★★★
Verifiziert
"Ich benutze dieses Produkt nun seit einigen Wochen und bin absolut begeistert. Die Qualität überzeugt, und es zeigt keinerlei Schwächen. Ein zuverlässiges Produkt, das ich guten Gewissens empfehlen kann."
L
Lucie Weitzel20.05.2025
★★★★★
Verifiziert
"Ich habe das Produkt in meinem Haus eingebaut und bin mehr als zufrieden. Es passt perfekt, die Verarbeitung ist einwandfrei und der Kundenservice war freundlich und hilfsbereit. Top Qualität!"
U
Ullrich Zahn11.07.2025

Shipping

Free shipping on orders over €1200

Delivery time 2–5 working days

Shipping with DHL & freight forwarder

Tracking via email

Warranty

5-year warranty on pipe & system

Standard-compliant according to DIN EN 1264

30-day right of return without giving reasons

Quality control Made in Germany

What is the difference to the EPS insulation board?

The hollow-chamber laying panel made of PP offers optimal mechanical protection for the heating pipes due to its hollow-chamber structure. In contrast to EPS panels, it is fire-rated (B1) and offers a dual laying system for tacker needles and PP clamping rails.

What pipe diameters fit into the laying panel?

The panel is designed for heating pipes with an outer diameter of 14, 16, and 17 mm. Please select the appropriate panel geometry for the respective pipe diameter.

How is the slab cut on the construction site?

"Can be cut to size tool-free with a utility knife" – the hollow chamber structure allows for easy cutting along the lines without special tools. Safety glasses recommended when cutting.

Is the panel suitable for underfloor heating without screed?

The hollow-chamber installation panel is primarily designed for wet screed systems. Its hollow-chamber structure ensures that the concrete optimally surrounds the pipes during pouring. For dry construction variants, we recommend our dry construction panel.

What are the advantages of PP material over EPS?

Polypropylene (PP) is more robust and fully recyclable. Fire protection class B1 is often a requirement for commercial applications. In addition, PP enables dual system compatibility with staples and clamping rails.

Your benefits at a glance

1

Twin-wall construction optimally protects heating pipes from mechanical stress

2

Dual installation system - compatible with staples AND PP clamping rails

3

Recyclable Polypropylene (PP) – Sustainable System Solution

4

Complies with DIN 18560 & DIN EN 1264, fire protection class B1

Areas of application

New constructionrenovationliving spacescommercial spacesunderfloor heatingwet screed
