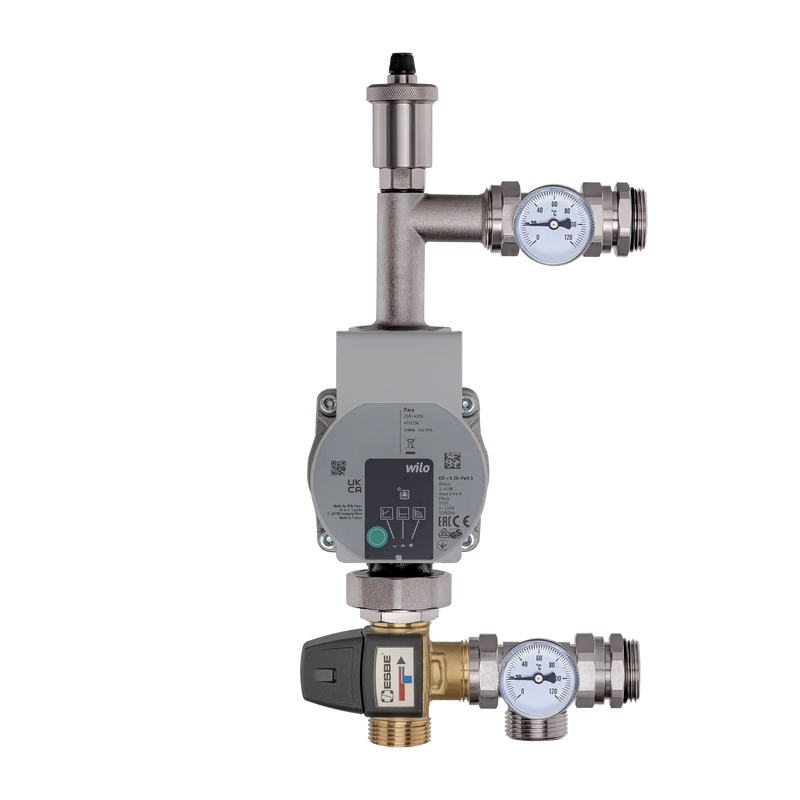

Regulation station nickel-plated automatic – WILO pump + ESBE three-way valve Kvs 3.4 | 20-50 °C

The Nickel-plated Control Unit with Automatic Air Vent (WILO + ESBE Kvs 3.4)mixes boiler water to a underfloor heating flow temperature of 20–50 °C. The inte...

€326
Inkl. 19% MwSt. · Paketversand frei ab 100 €· INSTALLMENT PLAN POSSIBLE
Entlüfter
Automatikentlüfter Schlüsselentlüfter
Configurable Heating Circuit Manifold Set | Underfloor Heating Set Discount
Bis zu 10 % sparen, wenn du ein Komplettset kaufst Jetzt im Konfigurator zusammenstellen
→
Auf Lager
Nur noch wenige Stück verfügbar
Delivery by no later than
✓ESBE three-way valve Kvs 3.4 – automatic flow temperature control 20–50 °C
✓WILO Circulating Pump – energy-efficient & quiet
✓Material: Nickel-plated – Automatic air vent
✓Max. 6 bar · PZH-certified · 2 years warranty
Paketversand frei ab 100 €
2-Year Warranty Manufacturer's warranty
30-Day Returns risk-free
Technical Consulting Mon–Fri · 8 am–5 pm
ZahlungAmerican Express Apple Pay BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard PayPal Satispay Shop Pay Union Pay Visa

The Nickel-plated Control Unit with Automatic Air Vent (WILO + ESBE Kvs 3.4)mixes boiler water to a underfloor heating flow temperature of 20–50 °C. The integrated automatic air vent automatically removes air from the system, preventing noise and efficiency losses. Ideal for systems where regular manual venting is not possible.

Technische Daten

Manufacturer
Wigell
Pump
WILO Steam Circulating Pump
Valve
ESBE Three-Way Valve Kvs 3.4
Temperature range
20–50 °C
Max. Pressure
6 bar
Connection dimension
235/210 mm · 1"
Material
Nickel-plated
Ventilation
Automatic air vent
Certification
PZH · 2 Year Warranty
Article number
01.05108
★★★★★
Verifiziert
"Automatischer Entlüfter spart viel Zeit bei der Inbetriebnahme. Habe direkt nach dem Befüllen kaum Luft gezogen. Regelung funktioniert präzise, Vorlauf liegt stabil bei 38 Grad."
F
Frank Weber18.01.2026
★★★★★
Verifiziert
"Sehr hochwertige Ausführung. Die automatische Entlüftung hat uns beim Erstbetrieb wirklich Arbeit erspart. WILO Pumpe läuft leise und energiesparend. Gerne wieder."
H
Helga Müller05.03.2026

Shipping

Paketversand 4,99 € · ab 100 € versandkostenfrei

Über 10 kg Versandgewicht 9,99 €

Lieferzeit 3–5 Werktage · Sendungsverfolgung per E-Mail

Warranty

2-year manufacturer's warranty (Wigell)

PZH-certified

Max. 6 bar operating pressure

30-day return policy without giving reasons

Why do I need a control station for underfloor heating?

A control station mixes the hot boiler water (often 60–80 °C) with the colder return flow so that the underfloor heating is supplied with the optimal flow temperature of 20–50 °C. This protects the screed and significantly increases system efficiency.

What's the difference between brass and nickel-plated?

Both versions have a brass housing. The nickel-plated version features a protective nickel layer, which increases corrosion resistance and provides a more premium look. Technically, both are equivalent.

What area can be supplied by this control station?

Depending on the number of circuits and pipe spacing, the station is suitable for areas up to approx. 160 m². For larger systems, we recommend using several control stations or a hydraulic calculation.

What does Kvs 3.4 mean for a three-way valve?

The Kvs value indicates the flow rate in m³/h at 1 bar pressure drop. Kvs 3.4 means: At 1 bar differential pressure, 3.4 m³/h flow through the valve. This is sufficient for typical single-family homes.

Is the control unit compatible with my heating circuit distributor?

The control station has 1" external threads and fits all common heating circuit distributors made of brass or stainless steel. For 3/4" distributors, a reducing ring (available in specialist shops) is required.

Your benefits at a glance

1

Flow temperature automatically regulated to 20–50 °C – no separate thermostat required

2

Compact design 235/210 mm – direct mounting on the heating circuit manifold

3

Bimetallic ESBE valve without electricity – low maintenance and fail-safe

4

Suitable for areas up to approx. 160 m² (depending on the number of circles)

Areas of application

Underfloor heatingHeating renovationDistribution systemLow temperatureSingle-family home
