Aufputzschrank für Heizkreisverteiler & Fußbodenheizung MC Therm

Made in GermanyChemnitz

DIN EN 1264checked

OEM-DirectNo intermediaries

Distribution technologySurface-mounted cabinet

MC Therm

Surface-mounted cabinet for heating circuit distributors & underfloor heating

Name: Surface-mounted cabinet for heating circuit distributors & underfloor heating
Brand: MC Therm
SKU: 10666015097096
Price: 43.69 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

The surface-mounted manifold cabinet for underfloor heatingoffers a secure and clean solution for housing heating circuit manifolds. The sturdy sheet steel c...

★★★★★

5.0 1 Bewertungen | 〜 3 Personen sehen dieses Produkt gerade an

€43,69

Inkl. 19% MwSt. · Versandkostenfrei ab 100 €· INSTALLMENT PAYMENT POSSIBLE

Auf Lager

Only 12 sets available

Delivery by

✓Sheet steel, powder-coated, RAL 9010 (white)

✓Available for 2 to 16 heating zones

✓Removable front door with coin lock

✓Surface-mounted installation – no wall breakthrough necessary

Number of networks: up to 4

Do you want to save 10% on your purchase? Then configure your complete set now in one of our configurators.

→

Free shipping ab 100 € Auftragswert

5-year warranty on pipe & system

30-Day Returns risk-free

Technical Consulting Mon–Fri · 8 AM–5 PM

Zahlung

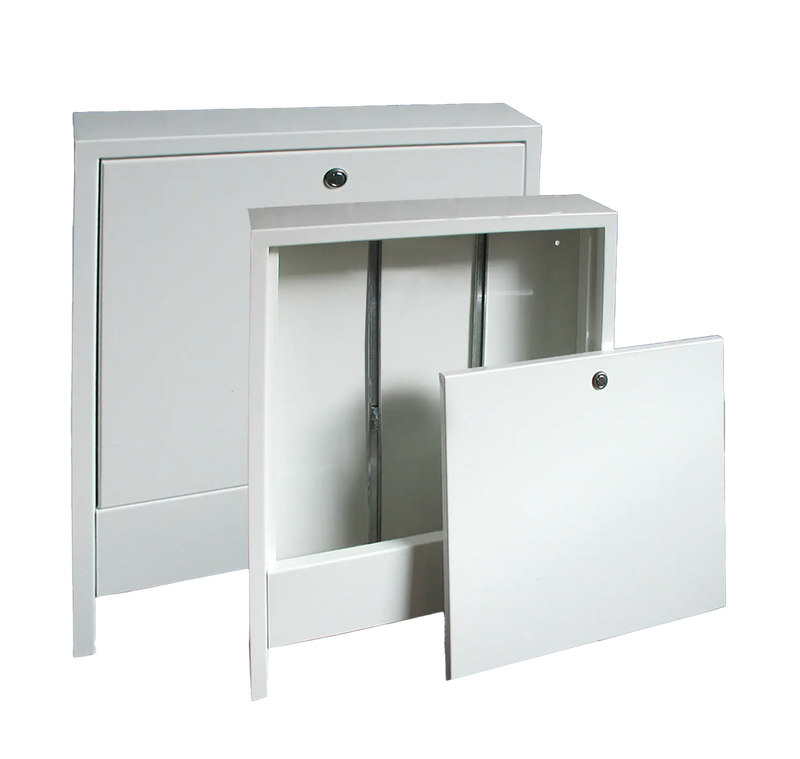

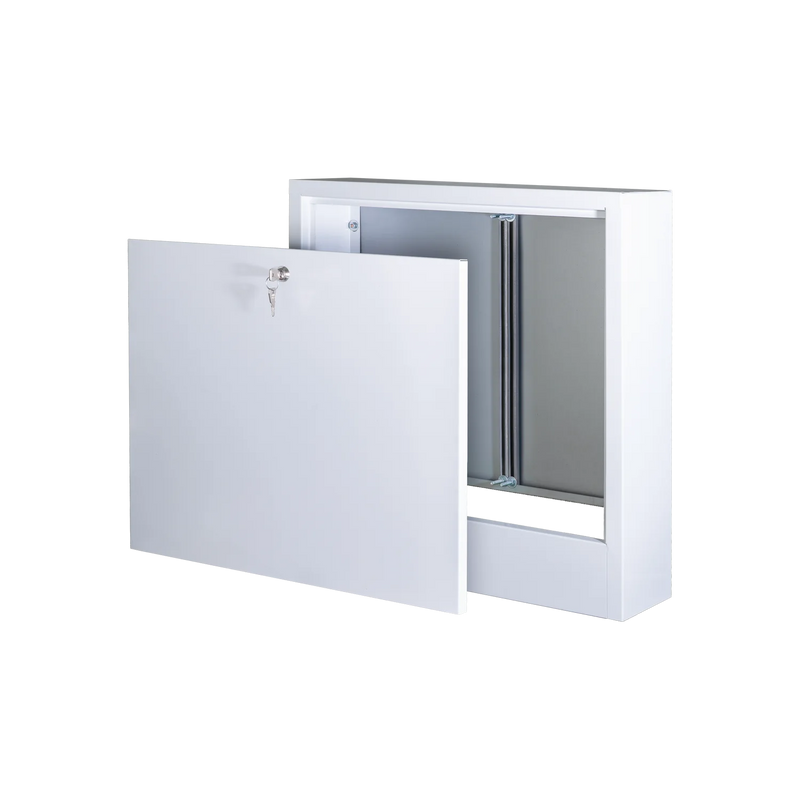

The surface-mounted manifold cabinet for underfloor heatingoffers a secure and clean solution for housing heating circuit manifolds. The sturdy sheet steel cabinet is white powder-coated in RAL 9010. The removable front door with lock and coin slot allows for easy access and protection. The cabinet is prepared for quick installation of the heating circuit manifold. Ideal for surface-mounted installations in living areas and utility rooms.

Technische Daten

Material

Steel sheet, powder-coated

Color

RAL 9010 white

Zones

up to 4 / 6 / 8 / 10 / 12 / 14 / 16 zones

Depth

585 mm

Closure

Coin-operated lock

Delivery

2–5 business days

Abmessungen je Zonenzahl

Heizkreise	Breite	Höhe	Tiefe
bis 4	385 mm	580 mm	110 mm
bis 6	485 mm	580 mm	110 mm
bis 8	615 mm	580 mm	110 mm
bis 10	760 mm	580 mm	110 mm
bis 12	845 mm	580 mm	110 mm
bis 14	1015 mm	580 mm	110 mm
bis 16	1130 mm	580 mm	110 mm

★★★★★

Verifiziert

"Danke,schnelle Versendung, tolles Produkt"

Ralf Stinkas22.12.2025

Shipping

Free shipping on orders over €100

Delivery time 2–3 business days

Shipping with DHL Paket

Tracking via email

Warranty

5-year warranty on pipe & system

Standard-compliant according to DIN EN 1264

30-day return policy without stating reasons

Quality control Made in Germany

What cabinet size fits my distributor?

The width of the cabinet depends on the number of heating circuits: for 4 circuits approx. 350 mm, for 8 circuits approx. 580 mm, for 12 circuits approx. 810 mm. Please measure the actual manifold in advance and choose the appropriate cabinet size.

What is the difference between a surface-mounted and flush-mounted cabinet?

The surface-mounted cabinet is installed on the wall without breaking through the wall – easier installation, but it protrudes from the wall. The flush-mounted cabinet is built into the wall and finished flush – more aesthetically pleasing, but requires a wall opening.

Is the coin lock necessary?

The coin slot lock protects the heating circuit setting from unintentional changes – e.g. by children or users without heating knowledge. In rented properties or office buildings, it is a sensible protection for heating control.
