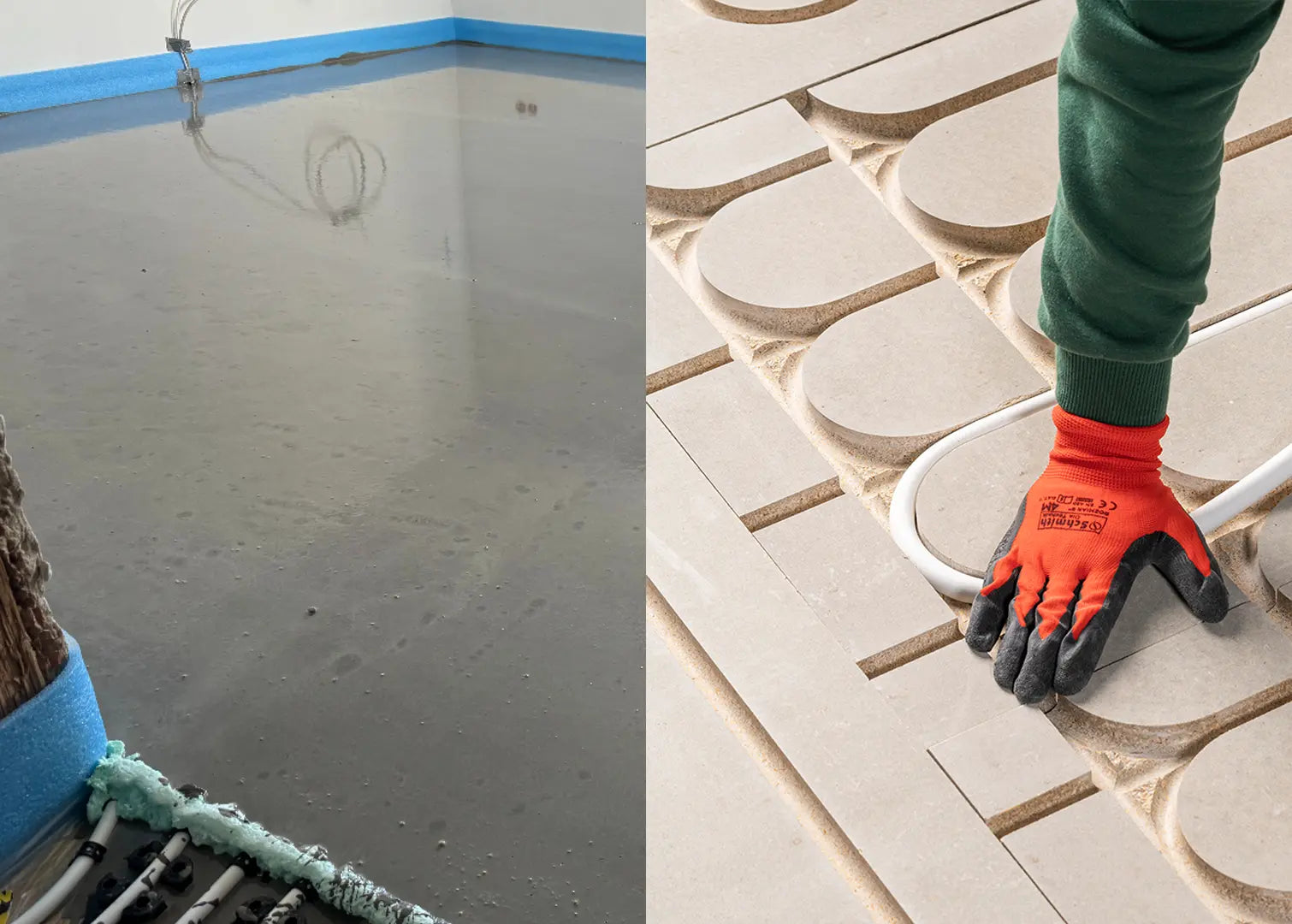

Drywall Underfloor Heating Compared: Dry Screed, Wet Screed, and Thin-Layer System

Dry construction systems with dry screed offer a quick, lightweight construction method, while wet screeds, including thin-layer systems, rely on the mass and heat storage of the mineral screed. The right choice for your project depends on static load, room height, construction time, and desired load-bearing capacity. Read this article to learn more about the comparison between dry screed and wet screed.

Dry Construction Underfloor Heating and Construction Types A and B

For surface heating, a classic distinction is made between Construction Type A and Construction Type B. This classification helps to clearly differentiate between dry construction underfloor heating and wet screed systems such as the thin-layer system or the velcro system.

Construction Type A: Wet Screed with Heating Pipes in the Screed Layer

In Construction Type A, the heating pipes are completely embedded in the heat or load distribution layer. This is the classic wet screed solution, where the pipes are encased in the screed mass.
This also includes thin-layer systems, which, while using a reduced screed thickness, technically remain pure wet screed variants of Construction Type A.

Construction Type B: Dry Construction with Heating Pipes in the Insulation Layer

In Construction Type B, the heating pipes are located under the load or heat distribution layer, typically within an insulation layer.
This structure is typical for dry construction underfloor heating with dry screed panels or similar systems. Static load, weight, and construction time differ fundamentally from wet variants (Construction Type A).

Dry Screed vs. Wet Screed

The biggest difference lies not only in the installation method but in the entire construction. A significant difference, for example, is the heating-up time according to DIN EN 1264 Part 4. Basically, all screeds must be heated up before installing floor coverings. While dry screed can usually be heated up after 0-24 hours, cement screeds should be heated up no earlier than 21 days, and anhydrite screeds no earlier than 7 days, according to various manufacturers.

Dry Screed: Dry Construction, Low Installation Height

Dry screed consists of prefabricated panels that are installed dry. The heating pipes are usually located in the insulation layer (Construction Type B), the so-called dry construction elements, and the dry screed panels form the load and heat distribution layer.

Typical characteristics of dry screed are:

• quick installation.
• no screed drying.
• low dead weight.
• low installation height.
• well suited for renovation and old buildings.

It is particularly suitable when construction time is limited, static load requirements are sensitive (e.g., wooden beam ceilings), or there is limited installation height available.

Wet Screed: Solid, Heat-Storing Construction

With wet screed, the heating pipes are laid in the screed mass (Construction Type A). This mineral construction offers high density, good thermal conductivity, and very high heat storage capacity.

Typical characteristics of wet screed are:

• complete encasement of pipes.
• extensive storage mass.
• very good load-bearing capacity.
• high long-term durability.
• proven standard solution in new construction.

Wet screed is particularly attractive when the overall construction needs to be robust, solid, and capable of long-term heavy use.

Thin-Layer System: Wet Screed with Minimal Installation Height

The thin-layer system is a special Type A variant of wet screed with only a small screed layer thickness. The heating pipes remain within the screed mass, but the overall structure is kept significantly shallower.

It is therefore not a dry construction system, but a wet-laid, slimmer screed solution.
Thin-layer systems are therefore particularly interesting when the advantages of wet screed (storage, mass, load-bearing capacity) are to be maintained, but the installation height must be kept as low as possible.

Typical Use Cases

• low installation heights for wet screed installations.
• limited room height, but desired mass and storage capacity.
• New construction or renovation projects where a complete dry construction is not desired.

Advantages of Dry Construction Underfloor Heating

Dry construction systems with dry screed offer a number of clear advantages, especially in renovations.

• Low weight: The construction places significantly less load on wooden beam ceilings and existing ceilings than wet screed.
• No construction moisture: No screed moisture is introduced, which reduces mold risks and drying times.
• Fast construction time: The panels can be laid quickly; the surface can usually be covered immediately.
• Slim structures: The systems are often designed for very low installation heights.
• Well suited for old buildings: Especially in old building renovations, dry construction is one of the most common sensible solutions.

Disadvantages of Dry Construction Underfloor Heating

Dry construction systems also have limitations.

• Lower heat storage: The constructive mass is significantly lower than with wet screed, which means less heat is stored.
• System-dependent limited load-bearing capacity: The permissible point and surface load depends on the respective system.
• System costs: Dry construction systems are often more expensive than pure wet screed variants, especially in new construction.
• Tile laying: Special panels, adhesives, and connections are often required to lay tiles securely.

Advantages of Wet Screed (incl. Thin-Layer System)

Wet screed offers clear systemic advantages compared to dry construction.

• Very good heat transfer: The pipes are fully embedded, so heat is transferred very evenly to the floor.
• High storage mass: The solid layer stores heat and leads to a very stable room temperature.
• High load-bearing capacity: Wet screed is very well suited for high continuous loads and heavy stresses.
• Good suitability for tiles: As a mineral layer, it offers a very stable base for tiles, ceramics, and other heavy coverings.
• Robust long-term use: With proper planning, wet screed has a very long service life.

The thin-layer system incorporates these advantages – with reduced installation height.

Disadvantages of Wet Screed (incl. Thin-Layer System)

However, wet screed also has typical disadvantages.

• Long construction time: The screed layer must dry before further work can be done. This significantly extends the construction time.
• Construction moisture: In contrast to dry construction, moisture is introduced into the building, which must be considered for sensitive building structures.
• Higher weight: The construction is significantly heavier, which can be problematic especially in old buildings or weaker ceilings.
• Coordination effort: Drying time, heating protocol, and possibly dry construction measures must be well planned.

Although the thin-layer system reduces the installation height, it remains essentially a wet screed system with all its typical advantages and disadvantages.

Long-term Load-Bearing Capacity Compared

In terms of long-term load-bearing capacity, wet screed – including the thin-layer system – usually has the upper hand.

• Wet screed is a massive, mineral layer with high compressive strength and very good suitability for high continuous loads and heavy use.
• Dry construction underfloor heating is also durable if the system is chosen correctly and installed professionally. However, the capacitive mass and load-bearing capacity for point loads are typically lower.

For very high usage densities and heavy weights, wet screed is the more robust solution, while dry construction excels particularly in renovation, low weight, and limited load-bearing capacity.

Installation Height and Construction Time

Especially in old building renovations, installation height and construction time often determine the choice of system.

• Dry construction underfloor heating allows for very slim structures and can be installed quickly, without a drying phase.
• Wet screed requires more time; thin-layer systems reduce the installation height but retain the construction time and moisture disadvantages of a wet system.

So, if you want low installation height, but no drying time, the choice tends towards dry construction.
If you want low installation height, but want to retain the storage capacity of a wet screed, the thin-layer system is the suitable alternative.

Costs Compared

In new constructions with concrete ceilings, wet screed is generally cheaper because the material and processing are simpler.
Dry construction systems are usually more expensive, but in renovations, they can be economically viable due to short construction times, no drying phase, and lower weight.

Thin-layer systems are a compromise: they are technically still wet screed, but due to the special anhydrite screed, their price is close to dry construction systems.

Trockenbau Fußbodenheizung Komplettset | Trockenbausystem-Konfigurator

EUR 136.22

EUR 145.00

jetzt kaufen

Dünnschicht Fußbodenheizung Komplettset | Konfiguriere dein Set!

EUR 100.00

EUR 10.58

jetzt kaufen

MC Klett Fußbodenheizung Komplettset | Konfiguriere dein Klettsystem

EUR 120.88

EUR 147.78

jetzt kaufen

To the dry construction systems

Which system for which project?

• Dry construction underfloor heating is particularly useful for:Old buildings.Timber beam ceilings.limited installation height.short construction time.renovation in an occupied state.
  • Old buildings.
  • Timber beam ceilings.
  • limited installation height.
  • short construction time.
  • renovation in an occupied state.
• Wet screed (incl. thin-layer system) is particularly useful for:New buildings with concrete ceilings.high permanent loads.high heat storage and stable temperature control.low time pressure and sufficient construction time.
  • New buildings with concrete ceilings.
  • high permanent loads.
  • high heat storage and stable temperature control.
  • low time pressure and sufficient construction time.
• Thin-layer system is particularly useful if:the installation height should be low.but the advantages of a wet screed (storage, mass, load capacity) should be maintained.
  • the installation height should be low.
  • but the advantages of a wet screed (storage, mass, load capacity) should be maintained.

Conclusion

Dry construction underfloor heating with dry screed, classic wet screed and thin-layer system differ mainly in weight, construction time, installation height and heat storage.
Dry construction is ideal for quick, light renovations with a low installation height.
Wet screed impresses in new builds with high robustness and storage capacity.
Thin-layer systems offer a meaningful alternative for installation height within the wet screed range, without changing the construction method.

For your planning, the following are important: construction method, statics, installation height, construction time, and later use – and not just the pure material.
With this knowledge, you can specifically choose between dry construction, wet screed, and thin-layer systems and find the right solution for your project.
