Randdämmstreifen mit Folienflansch | 50m Kerakoll
Randdämmstreifen mit Folienflansch | 50m Kerakoll
Made in GermanyChemnitz
DIN EN 1264checked
OEM-DirectNo intermediaries
DecouplingEdge insulation strips
Kerakoll

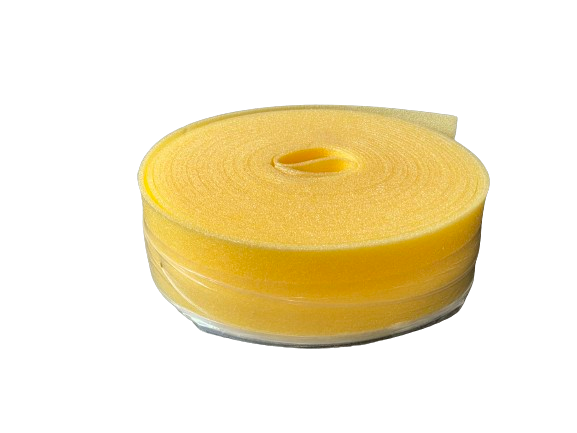

Edge insulation strips thin-layer system NerthusFlow 20m²

The edge insulation strip with foil flangeensures the standard-compliant separation of the screed from adjacent building components according to DIN 18560. I...

€22,51€0,45 /m
Inkl. 19% MwSt. · Versandkostenfrei ab 100 €· INSTALLMENT PAYMENT POSSIBLE
Auf Lager
Only 12 sets available
Delivery by
✓Integrated foil flange – compliant protection
✓Closed-cell PE foam – Impact sound insulating
✓DIN 18560 compliant – Standard product for screed work
✓50 m roll – for large-scale projects
1
Do you want to save 10% on your purchase? Then configure your complete set now in one of our configurators.
→
Free shipping ab 100 € Auftragswert
5-year warranty on pipe & system
30-Day Returns risk-free
Technical Consulting Mon–Fri · 8 AM–5 PM
ZahlungAmerican Express Apple Pay BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard PayPal Shop Pay Union Pay Visa
SKU: 81-000-000

The edge insulation strip with foil flangeensures the standard-compliant separation of the screed from adjacent building components according to DIN 18560. It consists of closed-cell high-pressure PE foam with improved impact sound insulation. The welded-on PE film reliably prevents the penetration of flow screed and screed water. The edge insulation strip is FCFW-free, moisture-resistant, and easy to process. Ideal for modern floor and screed constructions.

Technische Daten

Material
PE foam, closed-cell
Starch
8 mm
Roll length
50 m
Foil flange
Integrated, welded
Standard
DIN 18560
Fire class
B2, CFC-free

Noch keine Bewertungen vorhanden.

Shipping

Free shipping on orders over €100

Delivery time 2–3 business days

Shipping with DHL Parcel

Tracking via email

Warranty

5-year warranty on pipe & system

Standard-compliant according to DIN EN 1264

30-day right of return without giving reasons

Quality control Made in Germany

How is the edge insulation strip secured without self-adhesion?

Without self-adhesion, the strip is attached to the wall with double-sided adhesive tape or mounting adhesive. Alternatively, it can also be held in position by the screed itself – works well with careful screed installation.

Does the film flange need to be cut off?

After the flooring has cured and been laid, the protruding film flange and strip should be cut flush with the finished floor. This provides a clean, aesthetic finish at the wall edge.

How much edge insulation strip do I need?

Consumption depends on the room's perimeter (not the area). For a 5x4 m room (18 m perimeter), you will need approx. 18–20 m. A 50 m roll is sufficient for approx. 2–3 standard rooms.

Your benefits at a glance

1

Cheapest edge insulation strip variant with integrated foil flange

2

Foil flange prevents ingress of liquid and flowing screed

3

Closed-cell PE foam provides permanent protection against sound and thermal bridges

4

50 m roll covers large installation areas economically

Areas of application

Screededge insulation stripDIN 18560wet screednew constructioneconomical
