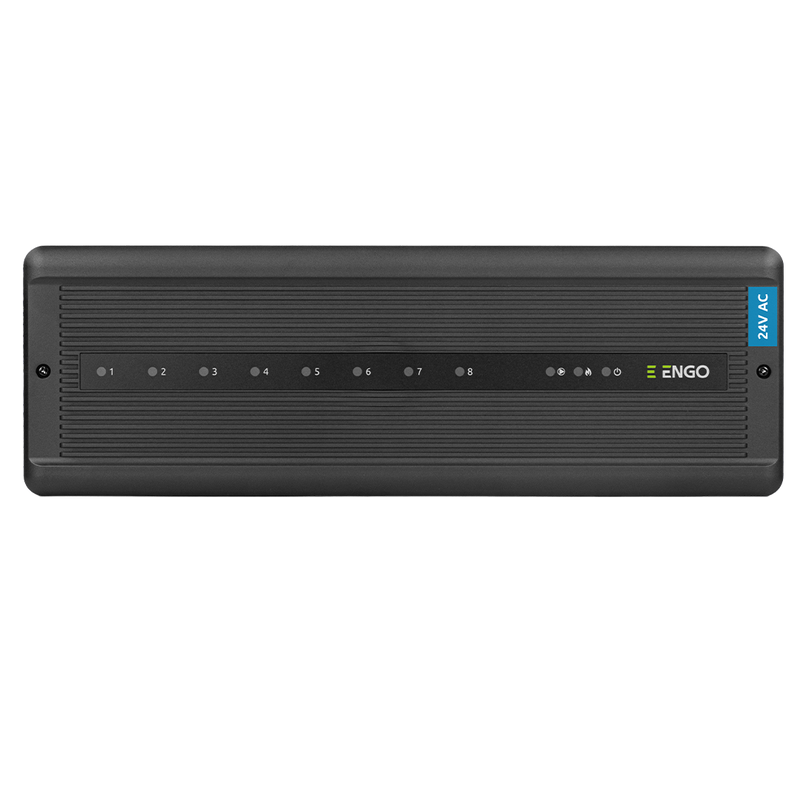

Regelklemmleiste ECB8-24 V kabelgebunden 8 Zonen - MC Therm front

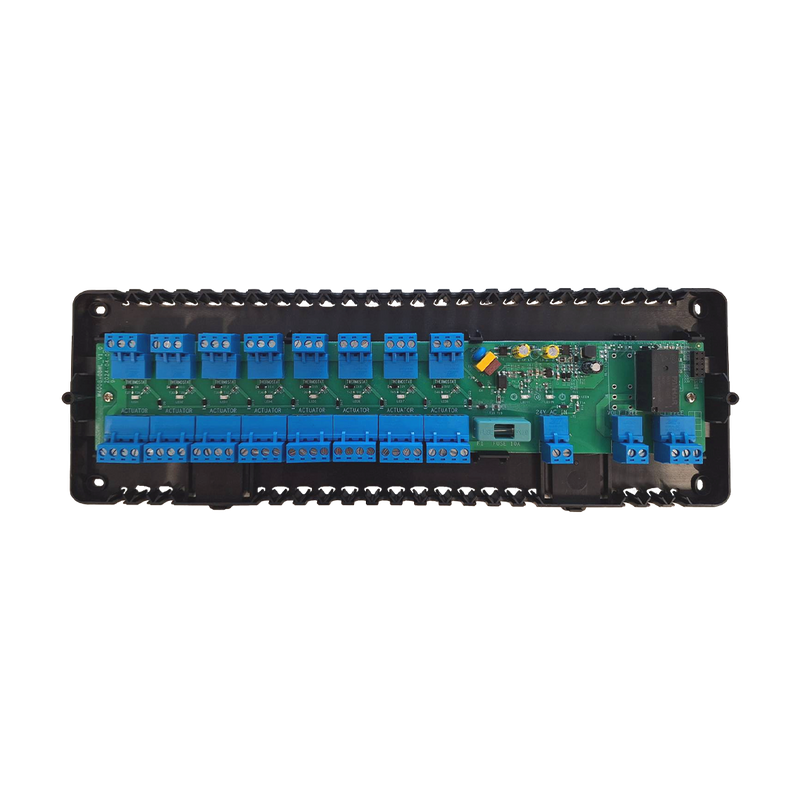

Regelklemmleiste ECB8-24 V kabelgebunden 8 Zonen - MC Therm innen

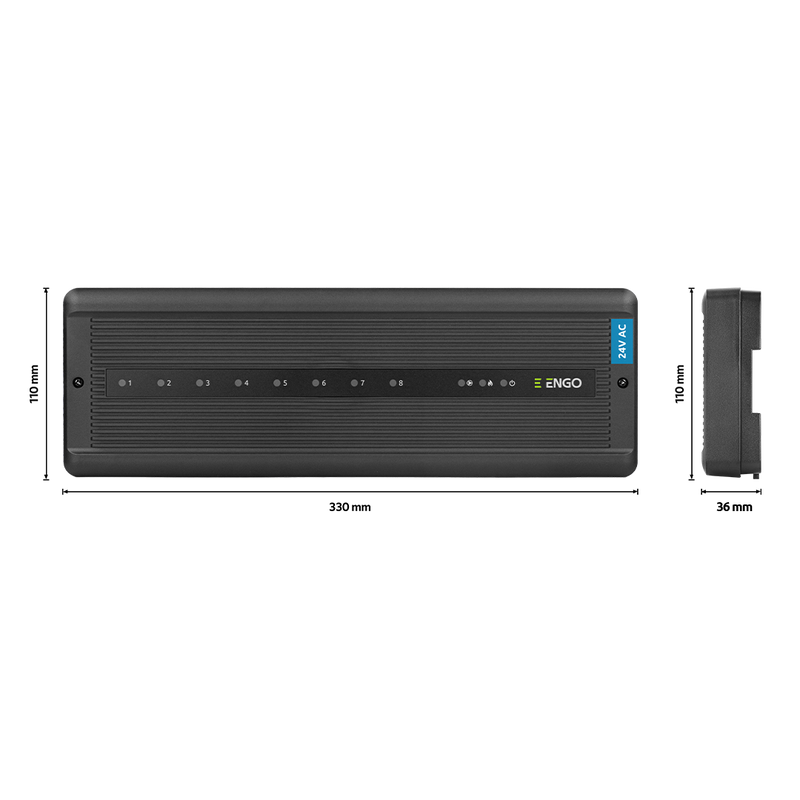

Regelklemmleiste ECB8-24 V kabelgebunden 8 Zonen - MC Therm Maße

Made in GermanyChemnitz

DIN EN 1264checked

OEM-DirectNo intermediaries

WiredControl terminal block 8 zones

Engo Controls

Control terminal block 230V wired 8 zones

Name: Control terminal block 230V wired 8 zones
Brand: MC Therm
SKU: 84-000-424
Price: 57.15 EUR
Availability: InStock

The ECB8-24 control terminal blockis a central control unit for underfloor heating systems with up to 8 heating zones. It operates with safe 24 V low voltage...

★★★★★

0.0 Bewertungen | 〜 3 Personen sehen dieses Produkt gerade an

€57,15

Inkl. 19% MwSt. · Paketversand frei ab 100 €· INSTALLMENT PAYMENT POSSIBLE

Bis zu 10 % sparen, wenn du ein Komplettset kaufst Jetzt im Konfigurator zusammenstellen

→

Auf Lager

Only 12 sets available

Delivery by

✓8 zones with safe 24V low voltage

✓Integrated Pump & Boiler Operation Output

✓Up to 50 actuators (24V) can be connected

✓Soft-start delay for component protection

Paketversand frei ab 100 €

30-Day Returns risk-free

Technical Consulting Mon–Fri · 8 AM–5 PM

Zahlung

The ECB8-24 control terminal blockis a central control unit for underfloor heating systems with up to 8 heating zones. It operates with safe 24 V low voltage and supports numerous actuators. Potential-free outputs for the pump and heater ensure flexible integration. Installation is possible either on a DIN rail or directly on the wall. Ideal for efficient and clear heating circuit control.

Technische Daten

Voltage

24 V AC / 50 Hz

Heating zones

8 independent zones

Actuators

up to 50 (24V)

Max. Total Load

10 A

Pump outlet

Volt-free COM-NO, max. 6A

Dimensions

330 x 110 x 36 mm

Lieferumfang

1 x control terminal block

Downloads

PDF

Datasheet PDF

↓

Noch keine Bewertungen vorhanden.

Shipping

Paketversand 4,99 € · ab 100 € versandkostenfrei

Über 10 kg Versandgewicht 9,99 €

Lieferzeit 3–5 Werktage · Sendungsverfolgung per E-Mail

Warranty

5 years manufacturer's warranty (Engo Controls)

Customer service & technical support

30-day right of return without giving reasons

Quality product from European manufacturing

When do I choose ECB8-24V instead of ECB8-230V?

The ECB8-24V is suitable when 24V thermostats are used – for example, with flush-mounted thermostats, building automation, or when low-voltage installations are required. In many countries, 24V is standard for thermostatic controls.

Which thermostats are compatible?

The ECB8-24V is compatible with 24V room thermostats in 2- or 3-wire configurations. All ENGO 24V thermostats are directly compatible.

What is the soft start delay?

If all 8 heating circuit valves were to open simultaneously (e.g. after night setback), the full current would flow immediately. The soft-start delay opens valves in stages, protecting the pump and boiler.

Can the ECB8-24V also be wall-mounted?

Yes. The ECB8-24V supports both DIN rail mounting in the control cabinet and direct wall mounting without a rail.
