Regelklemmleiste ECB8-230 V kabelgebunden 8 Zonen Engo Controls

Made in GermanyChemnitz

DIN EN 1264checked

OEM-DirectNo intermediaries

WiredControl terminal strip 8 zones

Engo Controls

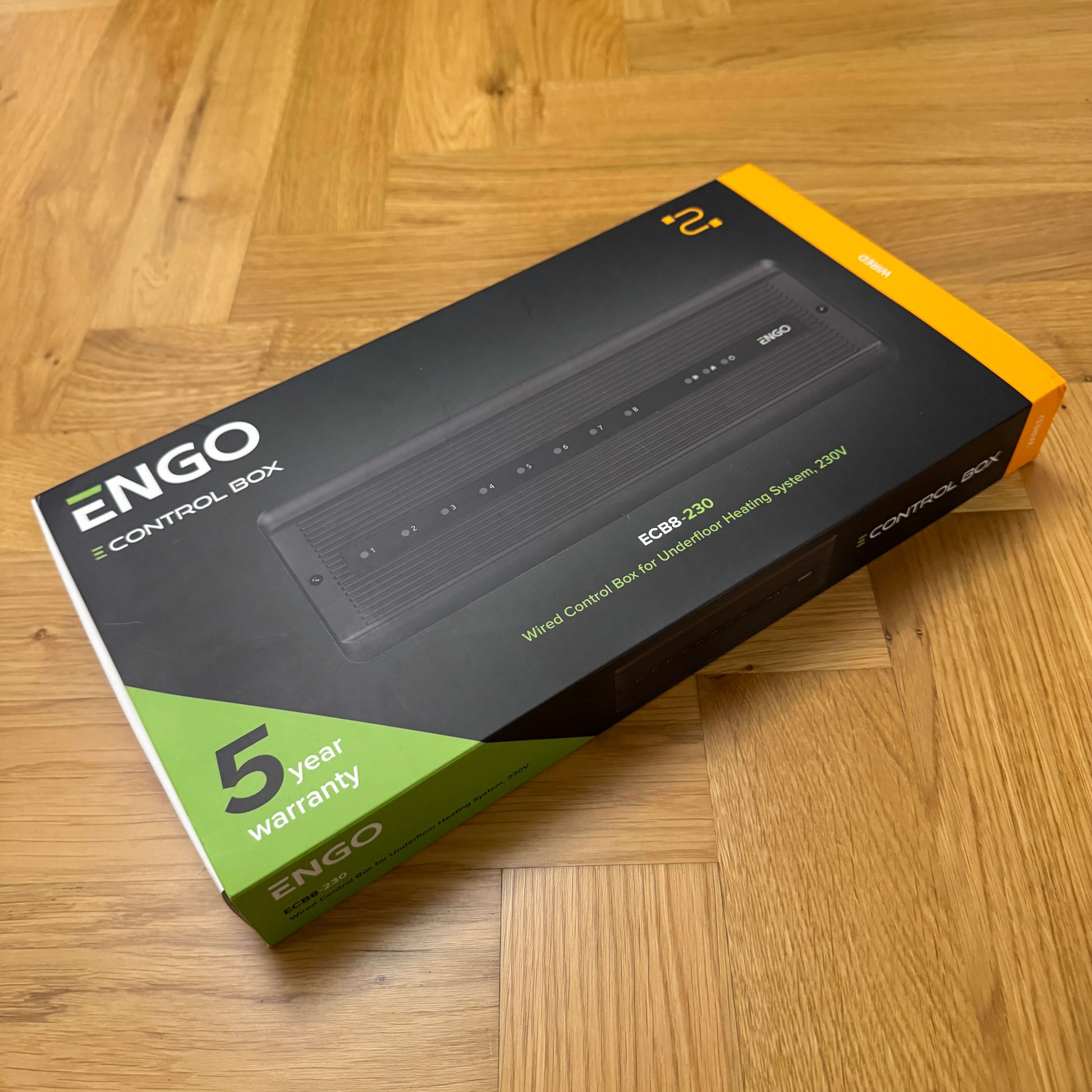

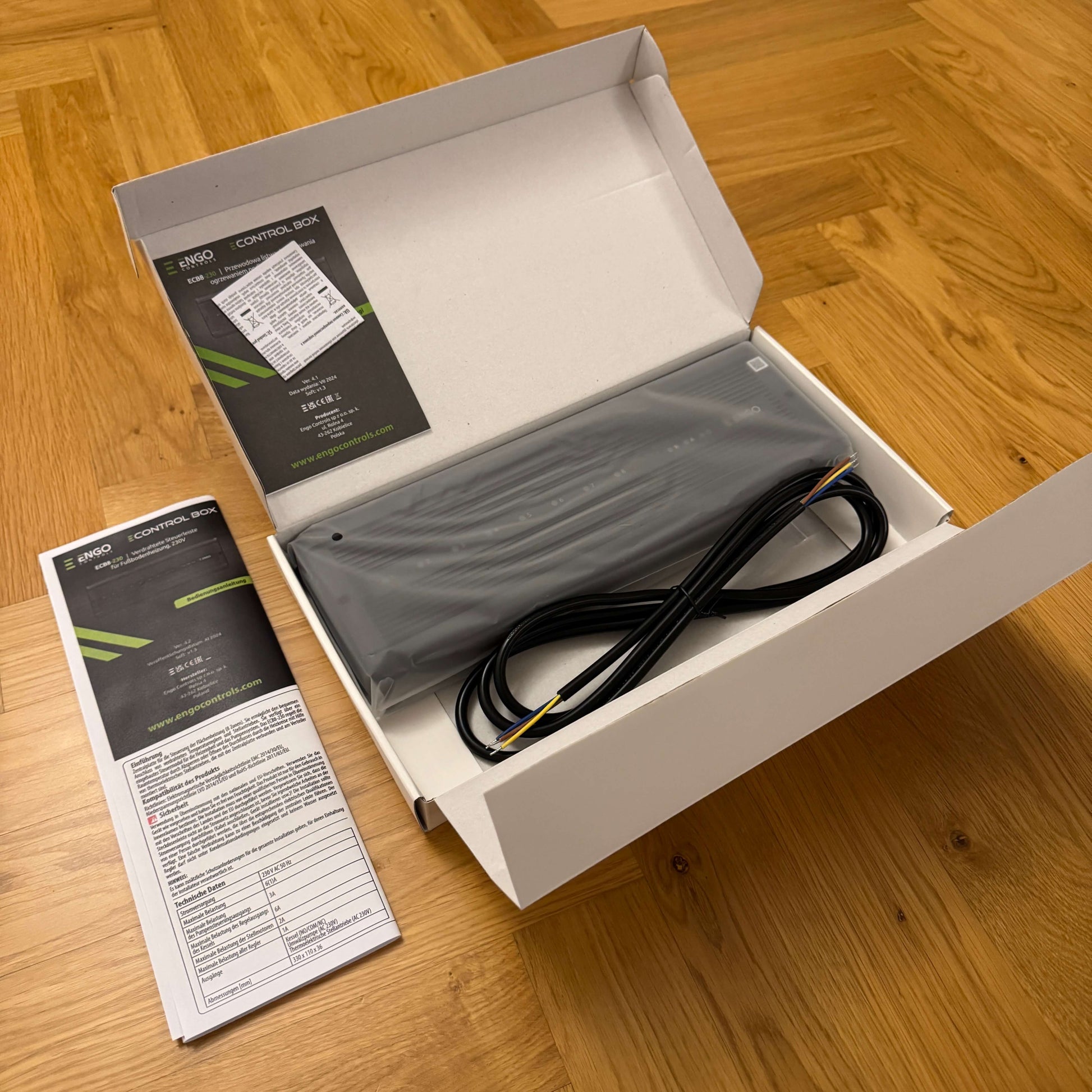

Control terminal strip ECB8-230 V wired 8 zones

Name: Control terminal strip ECB8-230 V wired 8 zones
Brand: MC Therm
SKU: 84-000-460
Price: 54.43 EUR
Availability: InStock
Rating: 5.0 (5 reviews)

The control terminal strip ECB8-230 V wired 8 zonesensures reliable and precise control of your underfloor heating. With the ability to individually control ...

★★★★★

5.0 5 Bewertungen | 〜 3 Personen sehen dieses Produkt gerade an

€54,43

Inkl. 19% MwSt. · Versandkostenfrei ab 100 €· INSTALLMENT PAYMENT POSSIBLE

Auf Lager

Only 12 sets available

Delivery by

✓8 independent heating zones controllable

✓Integrated Pump & Boiler Operating Output

✓Up to 50 actuators (230V) can be connected

✓DIN Rail Mounting – compact in the control cabinet

Do you want to save 10% on your purchase? Then configure your complete set now in one of our configurators.

→

Free shipping ab 100 € Auftragswert

5-year warranty on pipe & system

30-Day Returns risk-free

Technical Consulting Mon–Fri · 8 AM–5 PM

Zahlung

The control terminal strip ECB8-230 V wired 8 zonesensures reliable and precise control of your underfloor heating. With the ability to individually control up to eight heating zones, it offers maximum flexibility for a perfectly tempered home. Thanks to wired 230V connections, it is easy to integrate and ideal for energy-efficient heating systems.

Technische Daten

Voltage

230 V wired

Heating zones

8 independent zones

Actuators

up to 50 (230V)

Pump outlet

Integrated

Boiler outlet

Integrated

Dimensions

330 x 110 x 36 mm

Downloads

PDF

Datasheet PDF

↓

★★★★★

"Schnell geliefert und hochwertig verarbeitet. Sehr zufrieden!"

Frederik Lehmann06.09.2025

★★★★★

"Gut verarbeitet und hält die Verkabelung ordentlich."

Apollonia Schüler26.10.2024

★★★★★

"Einfache Montage und sichere Verbindung. Funktioniert einwandfrei mit meiner Fußbodenheizung."

Hans-Otto Heß19.10.2024

★★★★★

"Dieses Produkt hat meine Erwartungen übertroffen. Lieferung schnell, Montage unkompliziert und die Qualität ist hervorragend. Es funktioniert zuverlässig und sieht zudem noch gut aus – klare Kaufempfehlung. Gerne wieder!"

Lourdes Correa04.09.2025

★★★★★

"Das Produkt kam sehr gut verpackt an und ließ sich problemlos installieren. Die Bedienung ist intuitiv, und alles funktioniert so, wie es soll. Bin sehr zufrieden mit meinem Kauf."

Ernest Rup29.08.2025

Shipping

Free shipping on orders over €100

Delivery time 2–3 business days

Shipping with DHL Parcel

Tracking by email

Warranty

5-year manufacturer's warranty (Engo Controls)

Customer service & technical support

30-day right of return without giving reasons

Quality product manufactured in Europe

How many thermostats can be connected to the ECB8-230V?

The ECB8-230V has 8 inputs for 230V thermostats. One heating circuit can be controlled per thermostat input. Additionally, up to 50 actuators can be connected.

Can the ECB8-230V pump and boiler be switched directly?

Yes. The ECB8-230V has integrated outputs for the circulation pump and heat generator (boiler). This eliminates the need for additional relay modules.

What is the difference between ECB8-230V and ECB8-220V?

The ECB8-230V works with 230V thermostats, and the ECB8-24V works with 24V low-voltage thermostats. Both control 8 zones and have identical dimensions. The choice depends on the type of thermostat used.

How is the control terminal block mounted?

The ECB8-230V is mounted on a DIN rail in the control cabinet or distribution box. Removable screw terminals allow for easy wiring and subsequent maintenance.
