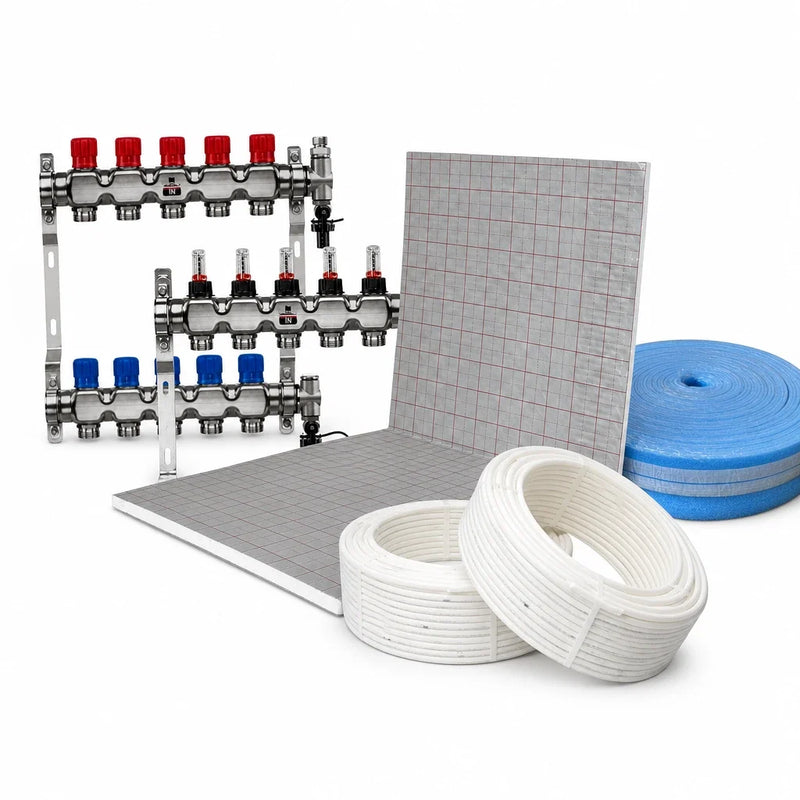

Tacker System Underfloor Heating Complete Set 150 m²
The Tacker System Underfloor Heating Complete Set 150 m² from MC Therm contains everything for the standard-compliant installation of an underfloor heating system according to DIN EN 1264 – tailored for exactly 150 m² of heating area with 150 mm pipe spacing.

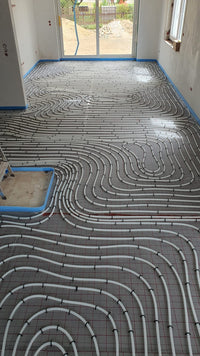

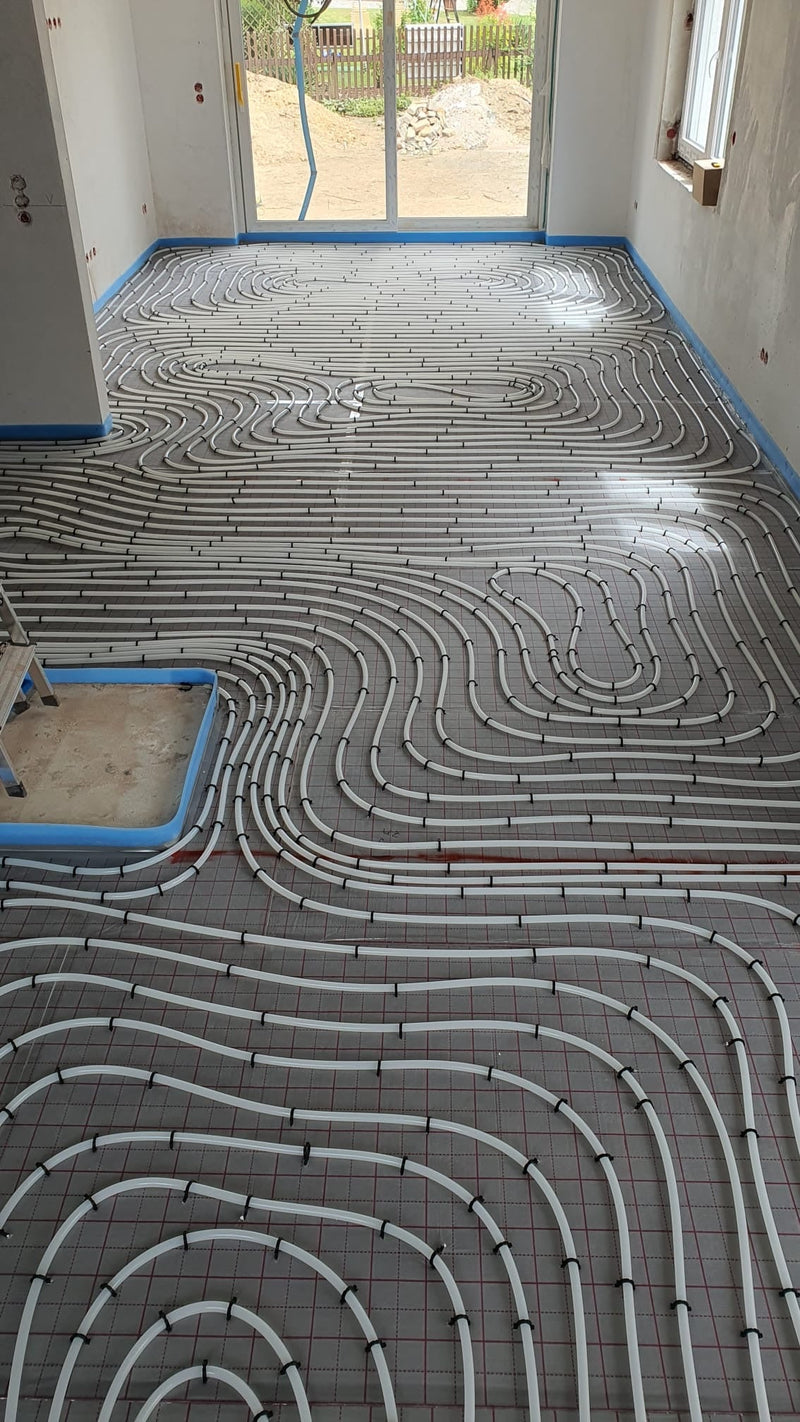

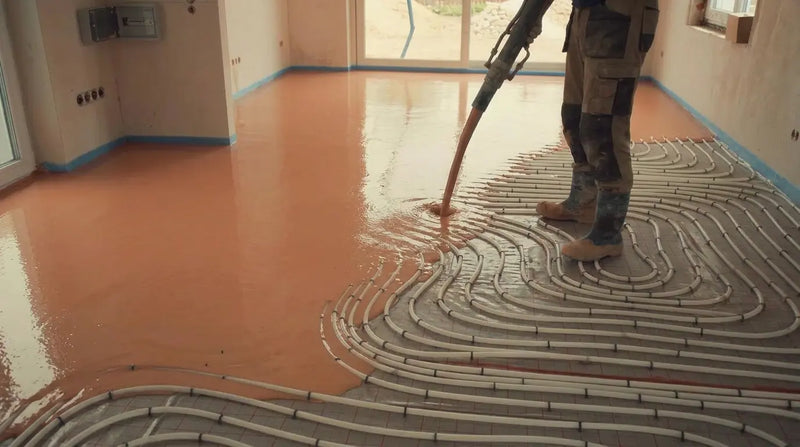

The EPS roll track (knobbed carrier board) is available in three thermal conductivity groups: WLG 045, WLG 040, and WLG 035 – depending on insulation thickness and load class. Six thicknesses from 20 to 50 mm allow adaptation to installation height and requirements according to EnEV/GEG. The heating pipe PE-XA EVOH Ø 16×2mm (or PE-RT / multi-layer composite pipe selectable) is laid with 150 mm spacing and embedded in the screed.
As a set, you save 3% compared to individual purchase. For individual quantities or different pipe spacings, our configurator is available.

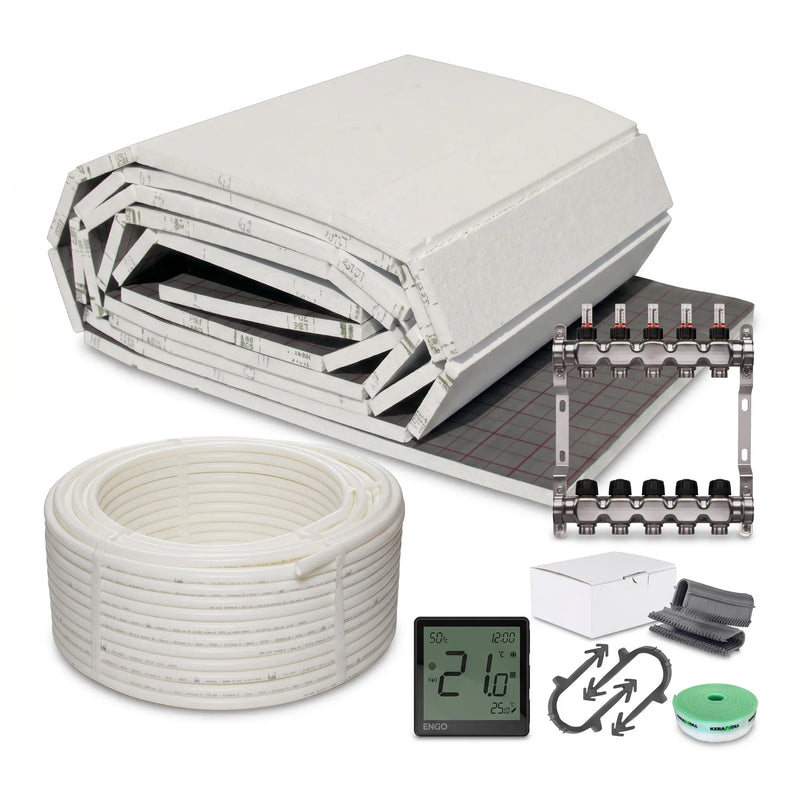

Lieferumfang:

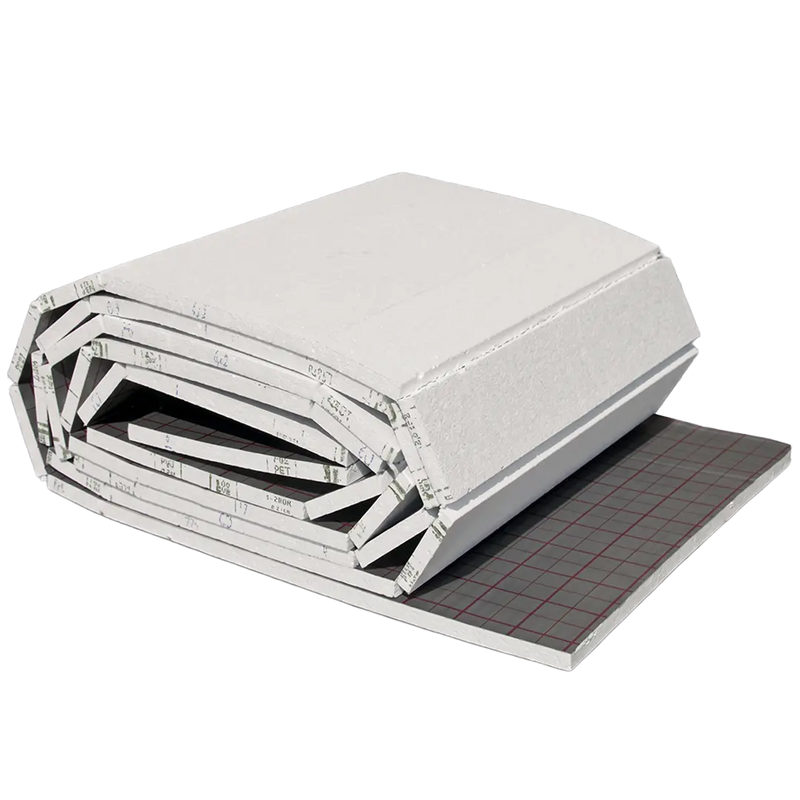

15× EPS roll track tacker system 30-3mm WLG 045, 10 m²/package
6× PE-XA EVOH heating pipe 16×2mm, 200m-roll (1200 m total)
2× Tacker staples 1000 pcs.
3× Edge insulation strips 150mm×8mm DIN 18560, 50m-roll
Alle Komponenten sind aufeinander abgestimmt und für die angegebene Heizfläche ausgelegt. Lieferformat Dämmung: EPS-Faltplatte.Für individuelle Mengen oder andere Rohrabstände: Konfigurator nutzen →
Technische Daten
Shipping
Freight delivery to curbside
Shipping costs €100 · from €500: €50 · from €1,200: free
Delivery time 5–10 business days
Tracking via email
Warranty
5-year warranty on pipe & system
Standard-compliant according to DIN EN 1264
30-day right of return
Made in Germany
What is included in the underfloor heating tacker system complete set?

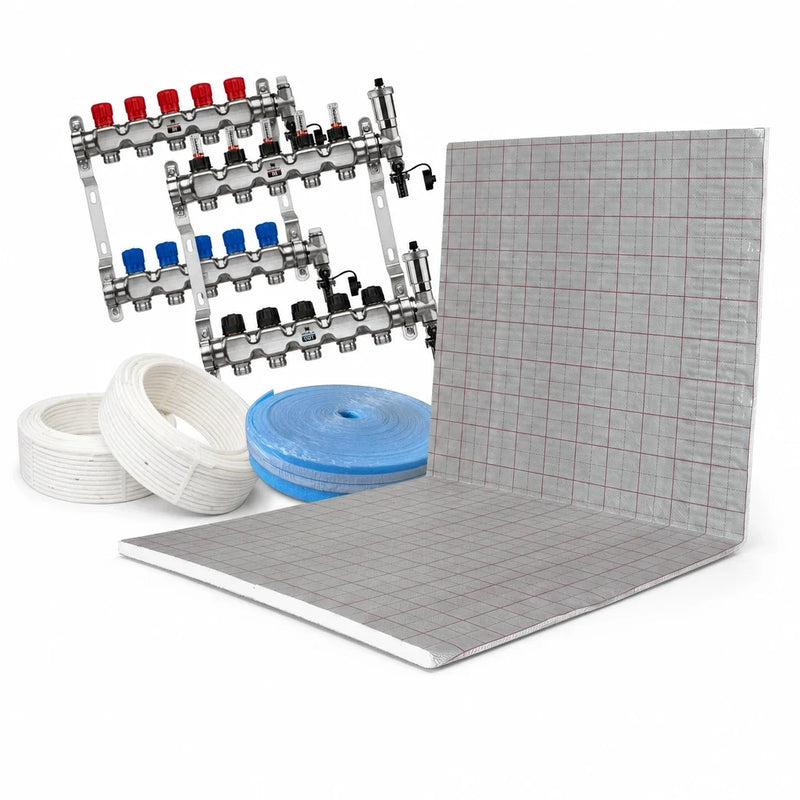

The set includes runway thermal insulation (30-3mm), PE-RT EVOH heating pipe Ø 16×2mm, and tacker pins – everything matched to the specified heating area. Alternatively, we supply the insulation as a folding panel.
Why is the underfloor heating tacker system complete set 3% cheaper than purchasing individual components?
As a complete set, you save 3% compared to purchasing the components individually. For individual quantities or larger projects, we recommend using our configurator for an exact calculation.
Runway or taxiway – what's the difference?

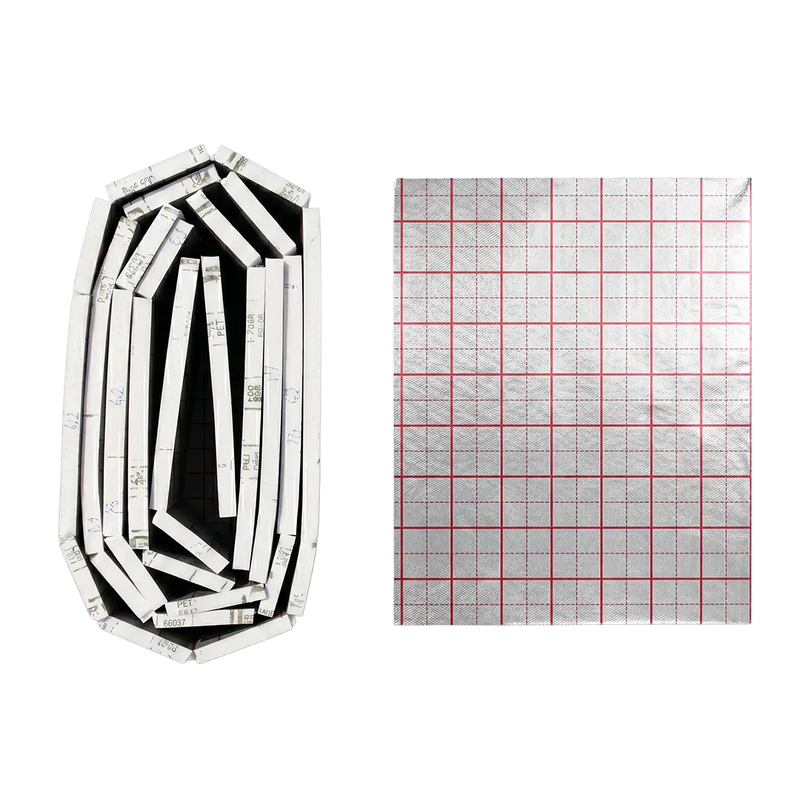

Rollbahn and Rolljet refer to the same product – the thermal insulation roll with tacker studs. The name varies depending on the manufacturer. As an alternative, we also offer folding panels in the same format.
What heating area is this complete tacker system designed for?
This set is precisely calculated for the specified heating area (with a pipe spacing of 150 mm). For other square meter sizes, please select the appropriate set from the size dropdown or use our configurator.
Is the staple underfloor heating complete set compatible with heat pumps?
Yes. The tacker system is optimally suited for low-temperature operation with heat pumps. Flow temperatures of up to 55 °C are possible, in accordance with DIN EN 1264.
Your benefits at a glance
Tacker System Complete Set with 3% Set Discount – all components precisely calculated and standard-compliant according to DIN EN 1264

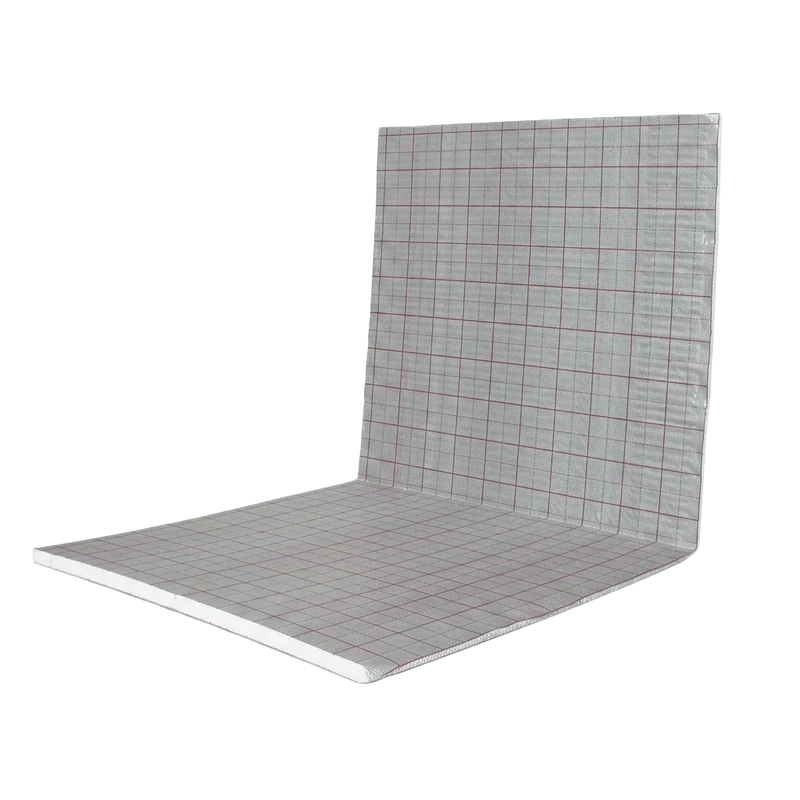

EPS-Faltplatte 30-3mm WLG 045: impact sound insulation, payload up to 4 kN/m² (approx. 400 kg/m²), DIN 18560 compliant
PE-Xa EVOH Heating Pipe 16×2mm: EVOH oxygen barrier according to DIN 4726, up to 10 bar operating pressure, up to 95 °C continuous temperature
Pipe type selectable: PE-XA / PE-RT / multi-layer composite pipe – calculated for 150mm pipe spacing
