Unterputzschrank für Heizkreisverteiler & Fußbodenheizung MC Therm

Made in GermanyChemnitz

DIN EN 1264checked

OEM-DirectNo intermediaries

Distribution TechnologyRecessed cabinet

MC Therm

In-wall cabinet for heating circuit distributor & underfloor heating

Name: In-wall cabinet for heating circuit distributor & underfloor heating
Brand: MC Therm
SKU: 10666018210056
Price: 42.07 EUR
Availability: InStock

The underfloor heating manifold flush-mounted cabinetoffers elegant and secure storage directly in the wall. It is made of robust, white powder-coated sheet ...

★★★★★

0.0 Bewertungen | 〜 3 Personen sehen dieses Produkt gerade an

€42,07

Inkl. 19% MwSt. · Versandkostenfrei ab 100 €· INSTALLMENT PAYMENT POSSIBLE

Auf Lager

Only 12 sets available

Delivery by

✓Flush with the wall – discreet integration

✓Steel sheet, powder-coated, RAL 9010 (White)

✓Available for 2 to 16 heating zones

✓No pre-punched side openings – flexible cable routing

Number of networks: up to 4

Do you want to save 10% on your purchase? Then configure your complete set now in one of our configurators.

→

Free shipping ab 100 € Auftragswert

5-year warranty on pipe & system

30-Day Returns risk-free

Technical Consulting Mon–Fri · 8 AM–5 PM

Zahlung

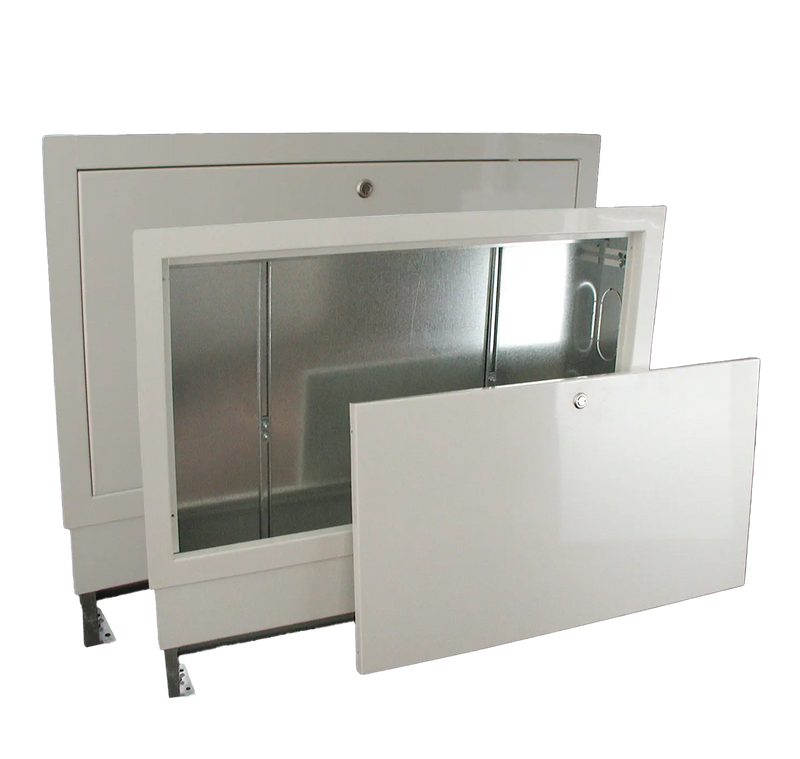

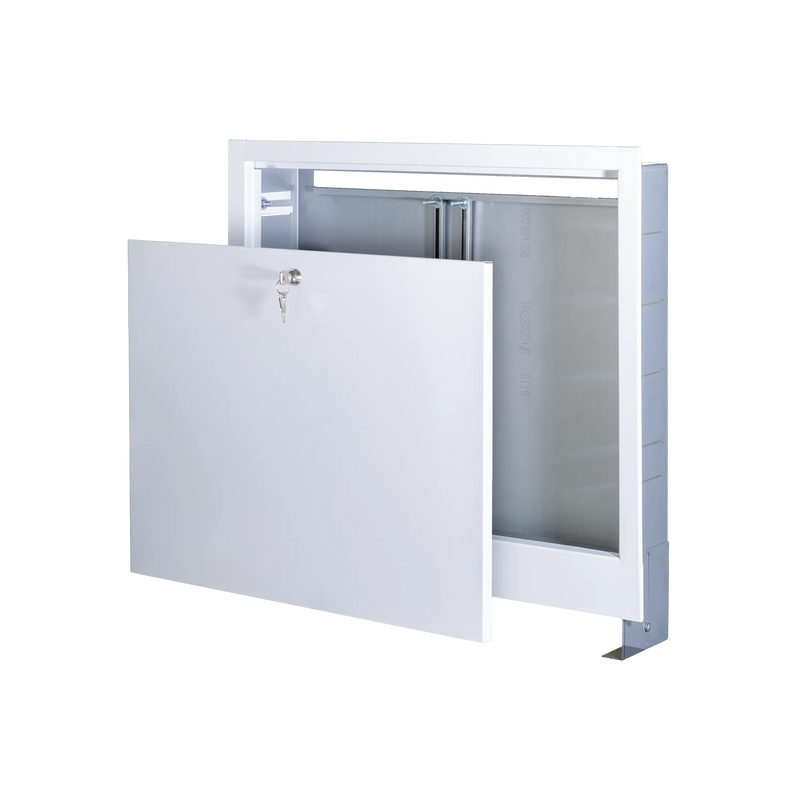

The underfloor heating manifold flush-mounted cabinetoffers elegant and secure storage directly in the wall. It is made of robust, white powder-coated sheet steel in RAL 9010. The removable front door with lock and coin slot ensures easy access and protection. The cabinet is prepared for quick installation of heating manifolds. Without pre-punched cutouts for pipes on the sides, it remains flexible in use.

Technische Daten

Material

Steel sheet, powder-coated

Color

RAL 9010 white

Zones

up to 4 / 6 / 8 / 10 / 12 / 14 / 16 zones

Depth

575–665 mm

Closure

Coin lock

Delivery

2–5 business days

Abmessungen je Zonenzahl

Netzanzahl	Breite	Höhe	Tiefe
bis 2	335 mm	575–665 mm	110–175 mm
bis 4	435 mm	575–665 mm	110–175 mm
bis 6	565 mm	575–665 mm	110–175 mm
bis 8	715 mm	575–665 mm	110–175 mm
bis 10	795 mm	575–665 mm	110–175 mm
bis 12	965 mm	575–665 mm	110–175 mm
bis 16	1130 mm	575–665 mm	110–175 mm

Noch keine Bewertungen vorhanden.

Shipping

Free shipping on orders over €100

Delivery time 2–3 business days

Shipping with DHL Parcel

Tracking via email

Warranty

5-year warranty on pipe & system

Standard-compliant according to DIN EN 1264

30-day return policy without stating reasons

Quality control Made in Germany

How deep does the wall niche for the recessed cabinet need to be?

The installation depth is 575–665 mm (depending on the model). The wall niche must be milled to the corresponding depth. For exterior walls or concrete walls, check whether sufficient depth is possible without thermal bridges.

Why aren't there any pre-punched side openings?

No pre-drilled openings mean maximum flexibility: cable routing (from above, below, or the side) is determined individually for the construction site and drilled to fit. This avoids unnecessary openings and protects the cabinet's stability.

When is a flush-mounted cabinet more sensible than a surface-mounted cabinet?

The flush-mounted cabinet is the first choice in new builds (plan before plastering), high-quality renovations, and wherever aesthetics are important. The surface-mounted cabinet is easier to retrofit and does not require a wall breakthrough.
